Colour: WHITE Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0681 Gearbox harness to main harness › Colour: WHITE Gender: Female
ConnectorsColour: WHITE Gender: Female
| Cav 1 | Col GN | Cct ALL |
| 2 | GY | ALL |
| 3 | NP | ALL |
| 4 | BLG | ALL |
| 5 | BG | ALL |
| 6 | RK | ALL |
| 7 | BU | 47 |
| 8 | B | ALL |
| 10 | BG | ALL |

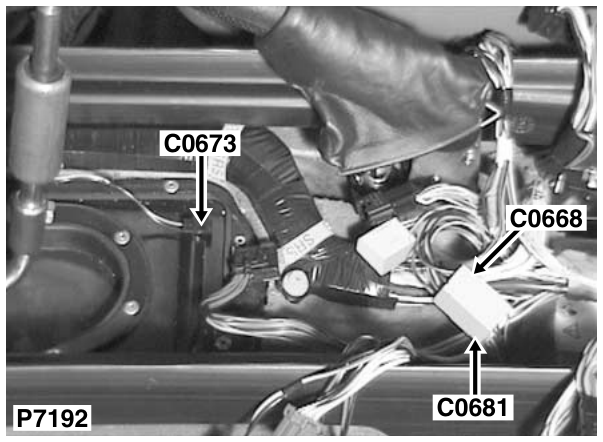

Description: Gearbox harness to main harness Location: Beneath centre console
Colour: WHITE Gender: Female
