Colour: BLACK Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0773 Switch pack-Seat › Colour: BLACK Gender: Female

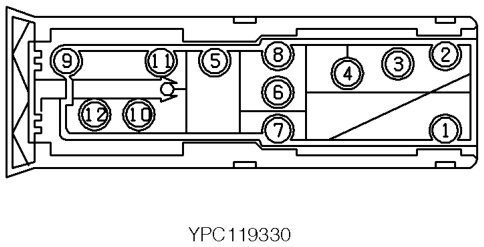

ConnectorsColour: BLACK Gender: Female

Cav 1	Col W	Cct 43
1	Y	43
2	W	43
2	Y	43
3	GY	43
4	R	43
5	WR	43
6	B	43
7	NY	43
7	U	43
8	U	43
8	NY	43
9	PS	43
10	O	43
11	P	43
12	S	43

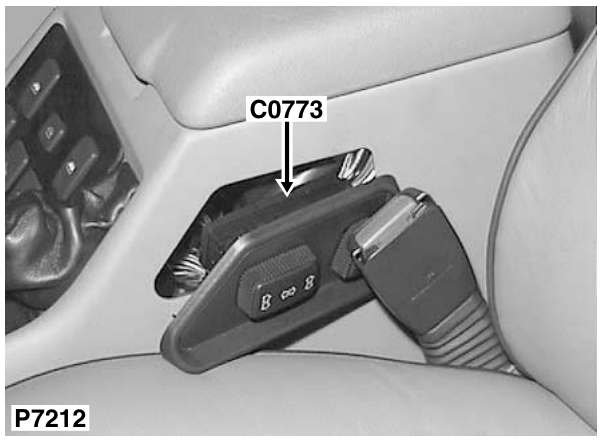

Description: Switch pack-Seat Location: Beneath centre console LH side

Colour: BLACK Gender: Female
