Description: Transistor-Power - LHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0858 Transistor-Power - LHD › Description: Transistor-Power - LHD
ConnectorsDescription: Transistor-Power - LHD
| Cav 1 | Col BO | Cct 15 |
| 2 | B | 15 |
| 3 | G | 15 |
| 4 | PG | 15 |
Description: Transistor-Power - LHD

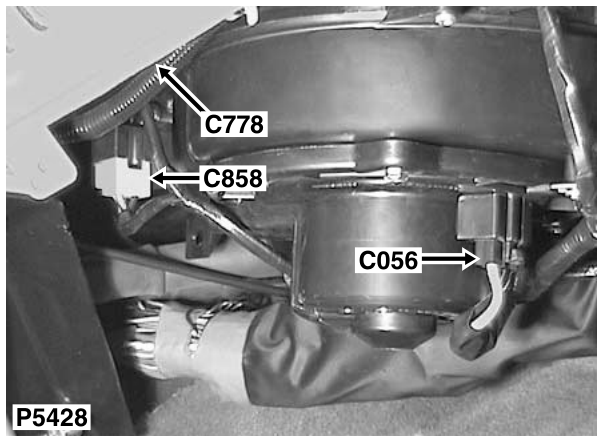

Location: Under RH side of fascia
NO CONNECTOR FACE
Colour: BLACK Gender: Female
