Description: Relay-Power - RHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0901 Relay-Power - RHD › Description: Relay-Power - RHD
ConnectorsDescription: Relay-Power - RHD
| Cav 1 | Col GW | Cct 15 |
| 2 | UR | 15 |
| 3 | BO | 15 |
| 4 | B | 15 |
Description: Relay-Power - RHD

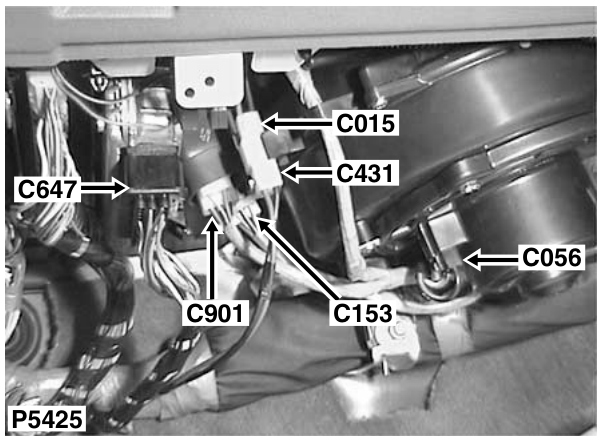

Location: Under LH side of fascia
NO CONNECTOR FACE
Colour: Gender: Female
