Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0925 Heater-Fuel burning - LHD › Colour: BLACK Gender: Female

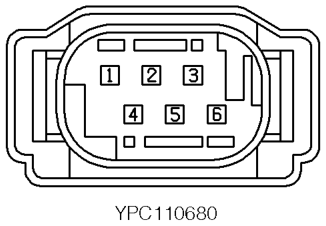

ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col YB | Cct 38 |
| 2 | R | 38 |
| 3 | NY | 38 |
| 4 | BN | 38 |
| 6 | WU | 38 |

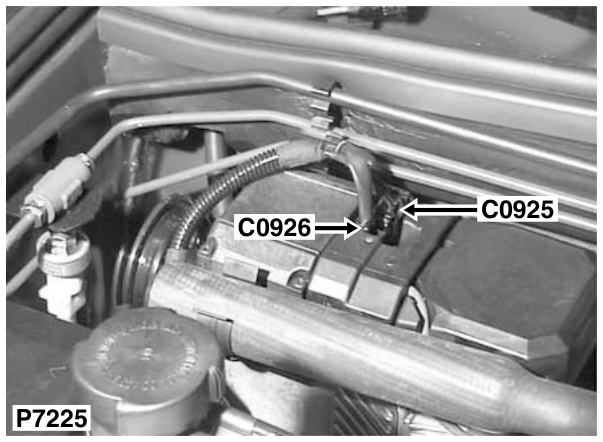

Description: Heater-Fuel burning - LHD Location: Rear RH side of engine compartment
Colour: BLACK Gender: Female
