Description: Relay-Power Seat-LH
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0975 Relay-Power Seat-LH › Description: Relay-Power Seat-LH
ConnectorsDescription: Relay-Power Seat-LH
| Cav 30 | Col NP | Cct 43 |
| 85 | NP | 43 |
| 86 | NP | 43 |
| 87 | WN | 43 |
Description: Relay-Power Seat-LH

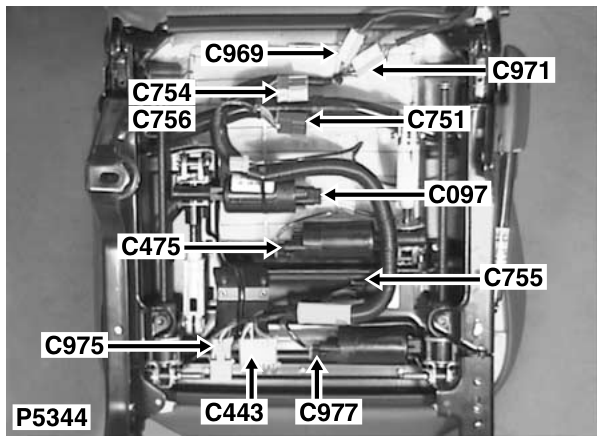

Location: Underside of front passenger's seat
NO CONNECTOR FACE
Colour: YELLOW Gender: Female
