Description: Head Unit-Audio System

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0983 Head Unit-Audio System › Description: Head Unit-Audio System

ConnectorsDescription: Head Unit-Audio System

Cav 13	Col SO	Cct 31
13	R	33
14	YG	31
14	W	33
15	B	33
16	S	33
17	U	33
18	S	31
19	R	31
19	K	33
20	W	31
20	P	33

Description: Head Unit-Audio System

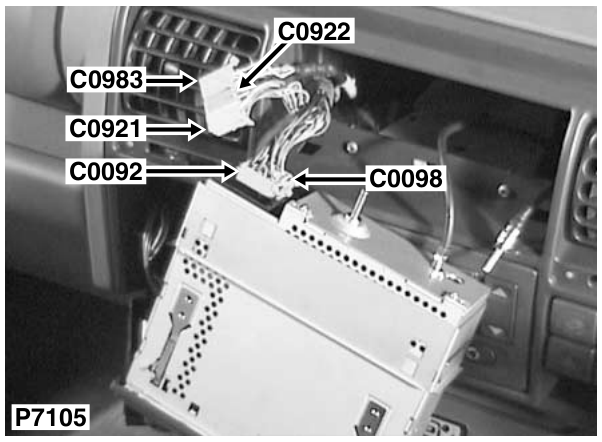

Location: Behind radio

Colour: BLACK Gender: Female

05 General
