Colour: GREY Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section

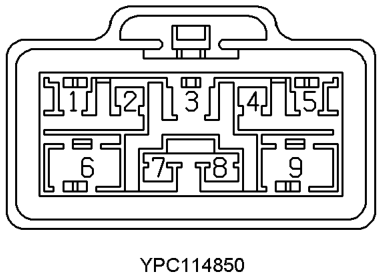

- C1481 Body harness to trailer harness › Colour: GREY Gender: Female
ConnectorsColour: GREY Gender: Female
| Cav 1 | Col GR | Cct ALL |
| 2 | RB | ALL |
| 3 | GW | ALL |
| 4 | RO | ALL |
| 5 | GP | ALL |
| 6 | PN | ALL |
| 7 | GN | ALL |
| 8 | RY | 1 |
| 9 | B | ALL |

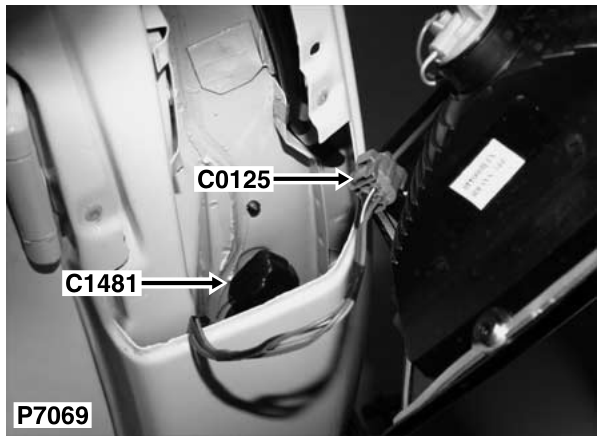

Description: Body harness to trailer harness Location: RH rear of vehicle
Colour: GREY Gender: Female
