Discovery II
EXTERIOR FITTINGS
REPAIRS
76-2-3

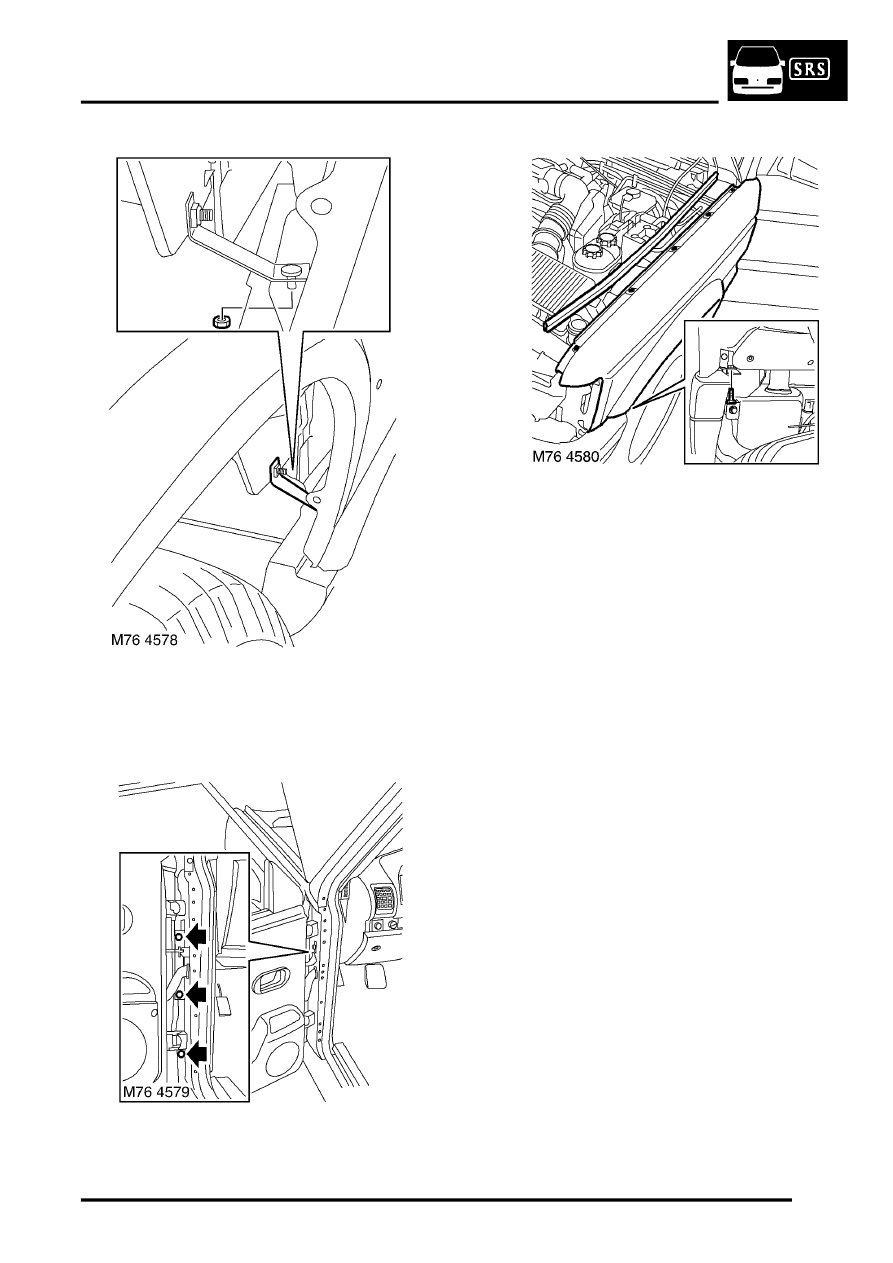

6. Remove bolt securing front wing lower support
bracket to the body.
7. Remove nut securing sill finisher to the front
wing lower support bracket.
8. Remove 3 bolts securing front wing rear edge
to the body and collect the bracket.
9. Remove bonnet sealing rubber from the front
wing flange.
10. Remove bolt securing front wing to the front
support bracket.
11. Remove 5 bolts securing front wing to the body
and remove the front wing.
NOTE: Do not carry out further dismantling if
component is removed for access only.
12. Remove nut securing lower support bracket to
the front wing and remove the bracket.
13. Remove the front wing wheel arch finisher.
