Discovery II
IN CAR ENTERTAINMENT
REPAIRS 86-6-31
REPAIRS
Radio
$% 86.50.03
Remove

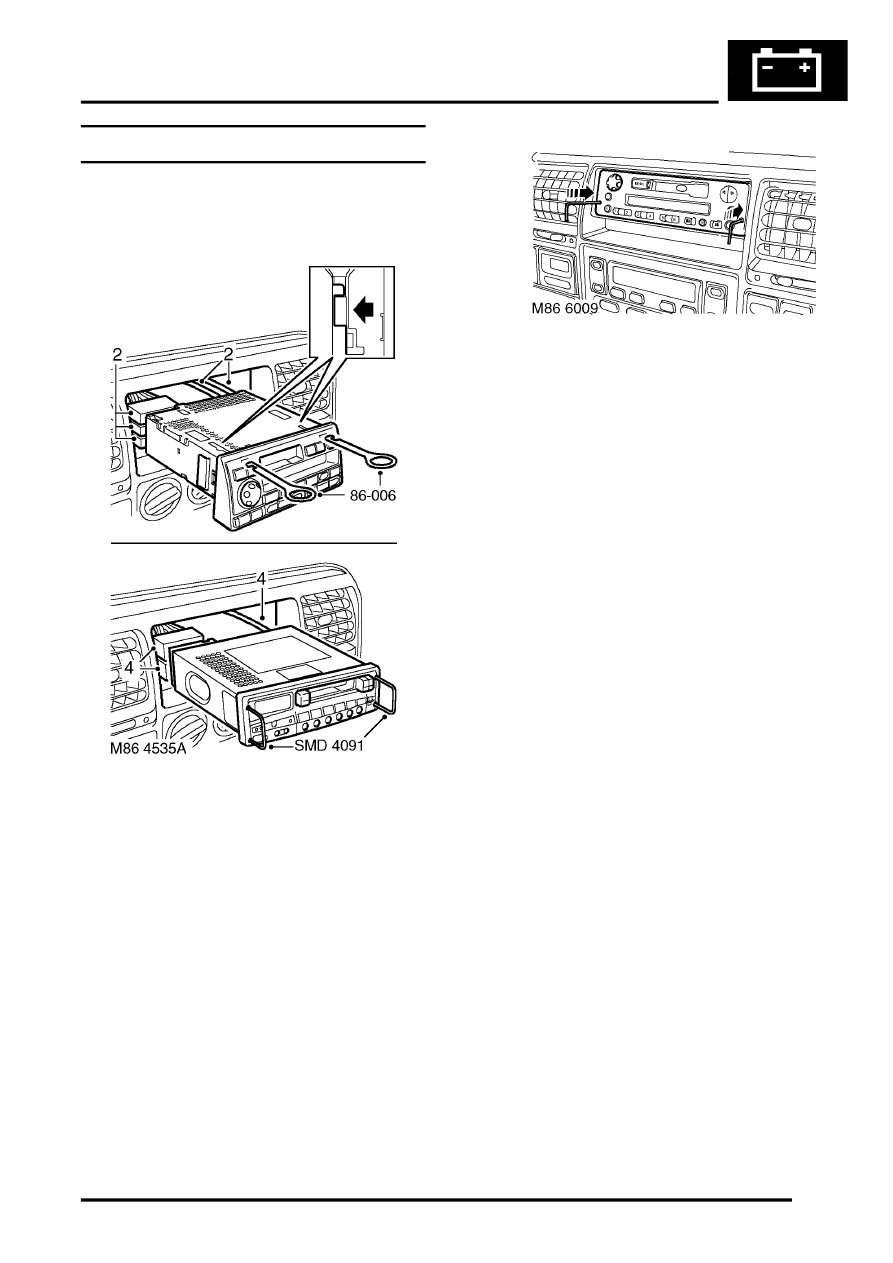

1. High line models only : Fit tool 86-006 with
cutouts facing outwards into slots at top of
radio, ensure that cutouts locate correctly with
retaining clips (arrowed) and pull radio cassette
player from fascia.
2. Disconnect 3 multiplugs and 2 coax cables and
remove radio cassette player.
3. Mid line models only : Fit tool SMD 4091 to
release retaining clips and pull radio cassette
player from fascia.
4. Disconnect 3 multiplugs and 2 coax cables and
remove radio cassette player.
5. Low line models only : Using 2.5 mm Allen
key, loosen bolts and release radio cassette
player from fascia.
6. Disconnect multiplug and aerial and remove
radio cassette player.
Refit
1. Position radio cassette player to fascia aperture
and connect multiplugs and coax cable(s).
2. Slide radio into fascia until retaining clips
engage.
3. Low line models only :Tighten Allen bolts.
4. Enter security code and check radio cassette
player for correct operation.
