Discovery II
MANIFOLDS AND EXHAUST SYSTEMS - V8
REPAIRS 30-2-11

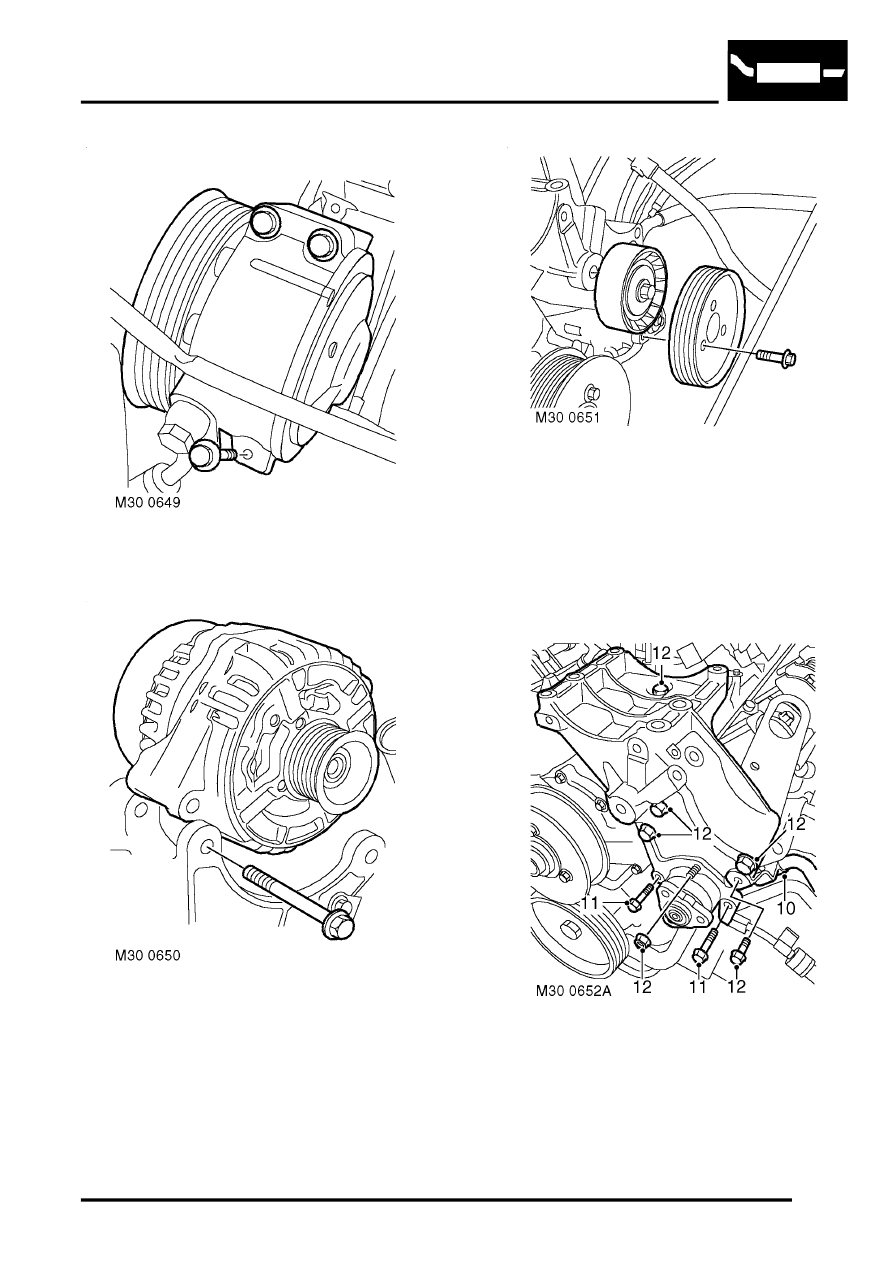

5. Remove 3 bolts securing ACE pump, release
pump and position aside.
6. Remove 2 bolts securing alternator and
remove alternator.
7. Remove 3 bolts securing PAS pump pulley and
remove pulley.
8. Remove jockey pulley.
9. Position tray to catch spillage, release PAS
pump high pressure pipe.
CAUTION: Always fit plugs to open
connections to prevent contamination.
10. Remove bolt securing oil cooling pipe and
release bracket from auxiliary housing.
11. Remove two bolts securing PAS pump.
12. Remove 5 bolts and one nut securing auxiliary
housing. Pull housing forward, release PAS
pump and remove housing.
