20. Remove inlet manifold gasket.
21. Remove gasket seals.
Refit
1. Clean all traces of sealant from cylinder head
and cylinder block notches.
2. Clean mating faces of cylinder block, cylinder
head and inlet manifold.
3. Apply sealant, Part No. STC 50550 to cylinder
head and cylinder block notches.
4. Fit new gasket seals, ensuring ends engage
correctly in notches.
5. Fit new inlet manifold gasket.
6. Position gasket clamps and fit bolts, but do not
tighten at this stage.

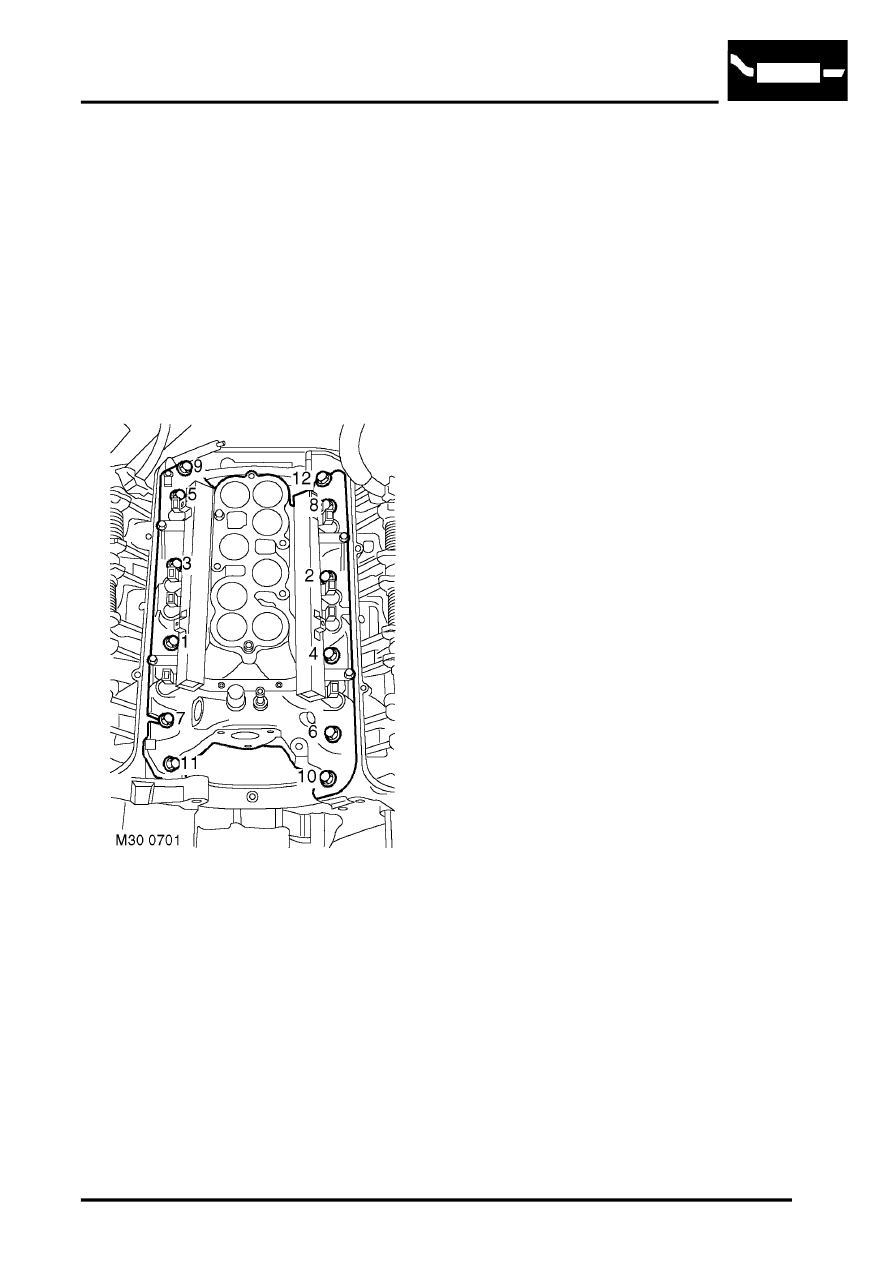

7. Position inlet manifold to engine. Fit manifold
bolts and, working in the sequence shown,
tighten bolts initially to 10 Nm (7 lbf.ft) then to
51 Nm (38 lbf.ft).
8. Tighten gasket clamp bolts to 18 Nm (13 lbf.ft).
9. Connect fuel pipe.
10. Clean top hose outlet pipe mating faces.
11. Fit new 'O' ring to outlet pipe.
12. Position outlet pipe, fit bolts and tighten to 22
Nm (16 lbf.ft).
13. Position alternator, fit bolts and tighten to 45
Nm (33 lbf.ft).
14. Position PAS pump to auxiliary housing and
locate housing on engine. Fit bolts and tighten
to 40 Nm (30 lbf.ft).
15. Fit and tighten auxiliary housing nut to 10 Nm (7
lbf.ft).
16. Fit bolts securing PAS pump and tighten to 22
Nm (16 lbf.ft).
17. Position oil cooling pipe bracket fit bolt and
tighten to 22 Nm (16 lbf.ft).
18. Fit and tighten PAS pump high pressure pipe.
19. Position jockey pulley and tighten bolt to 50 Nm
(37 lbf.ft).
20. Clean PAS pump pulley mating faces.
21. Position PAS pump pulley, fit bolts and tighten
to 22 Nm (16 lbf.ft).
22. Clean ACE pump dowels and dowel holes.
23. Position ACE pump, fit bolts and tighten to 22
Nm (16 lbf.ft).
24. Fit auxiliary drive belt.
REPAIRS, Belt - auxiliary drive.
25. Secure injector harness and connect injector
multiplugs.
26. Position top hose and secure clips.
27. Fit rocker covers.
l
l
28. Check and top up PAS fluid
