MANUAL GEARBOX - R380
37-24
REPAIRS
Cooler - oil - gearbox - V8
$% 37.24.02
Remove
1. If fitted: Remove engine oil cooler.
ENGINE - V8, REPAIRS, Cooler -
2. Position absorbent cloth under each gearbox
oil cooler hose connection to collect spillage.

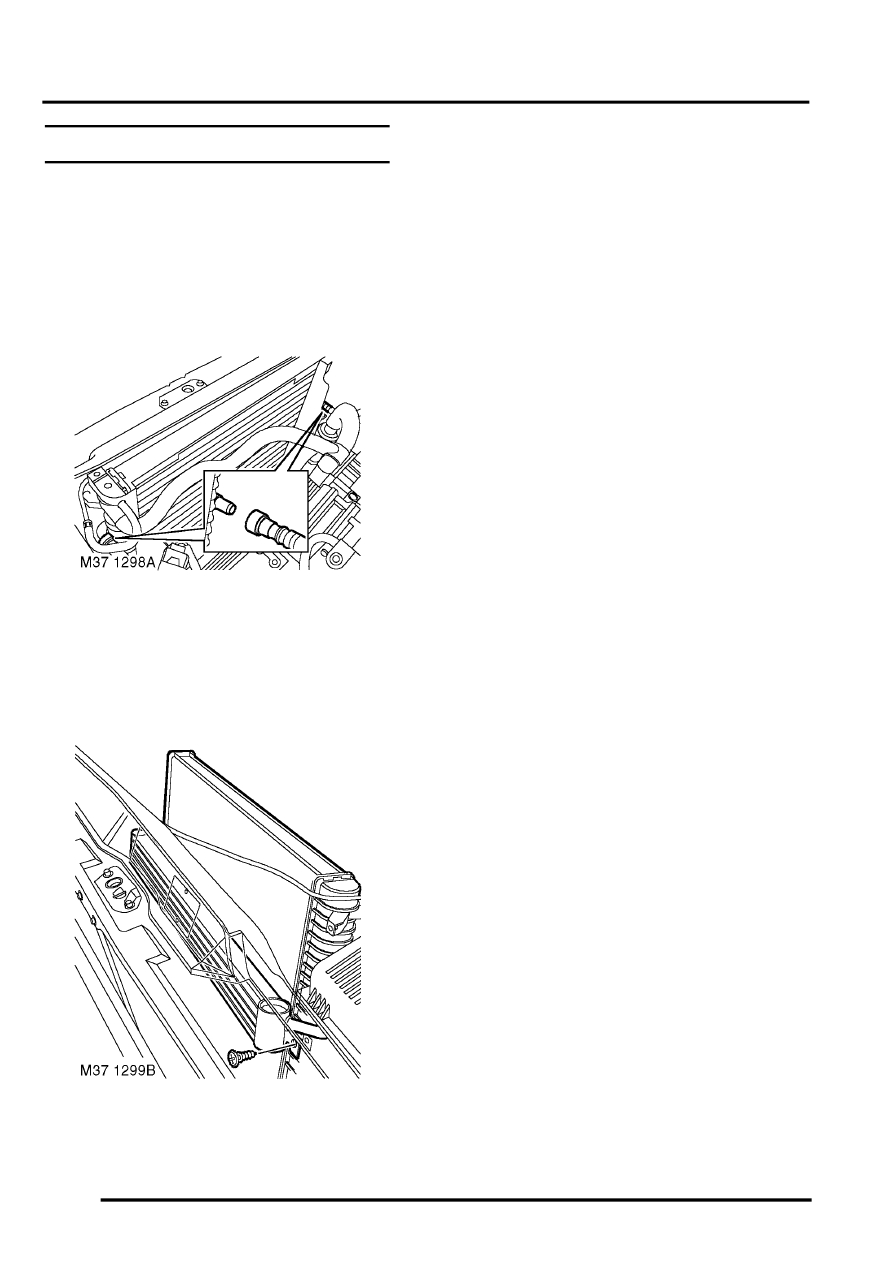

3. Push against coupling release rings and
disconnect both hoses from oil cooler.
CAUTION: Always fit plugs to open
connections to prevent contamination.
4. Remove screw securing oil cooler to radiator.
5. Release oil cooler from its location on radiator.
6. Move radiator towards engine sufficiently only
to release gearbox oil cooler from radiator.
7. Remove gearbox oil cooler.
CAUTION: Always fit plugs to open
connections to prevent contamination.
Refit
1. Fit gearbox oil cooler to radiator, engage in
location and secure with screw.
2. Ensure connections are clean and secure
hoses to cooler.
3. If fitted: Fit engine oil cooler.
ENGINE - V8, REPAIRS, Cooler -
4. Top up gearbox oil.
