Discovery II
MANUAL GEARBOX - R380
REPAIRS
37-23
Cooler - oil - gearbox - Diesel
$% 37.24.02

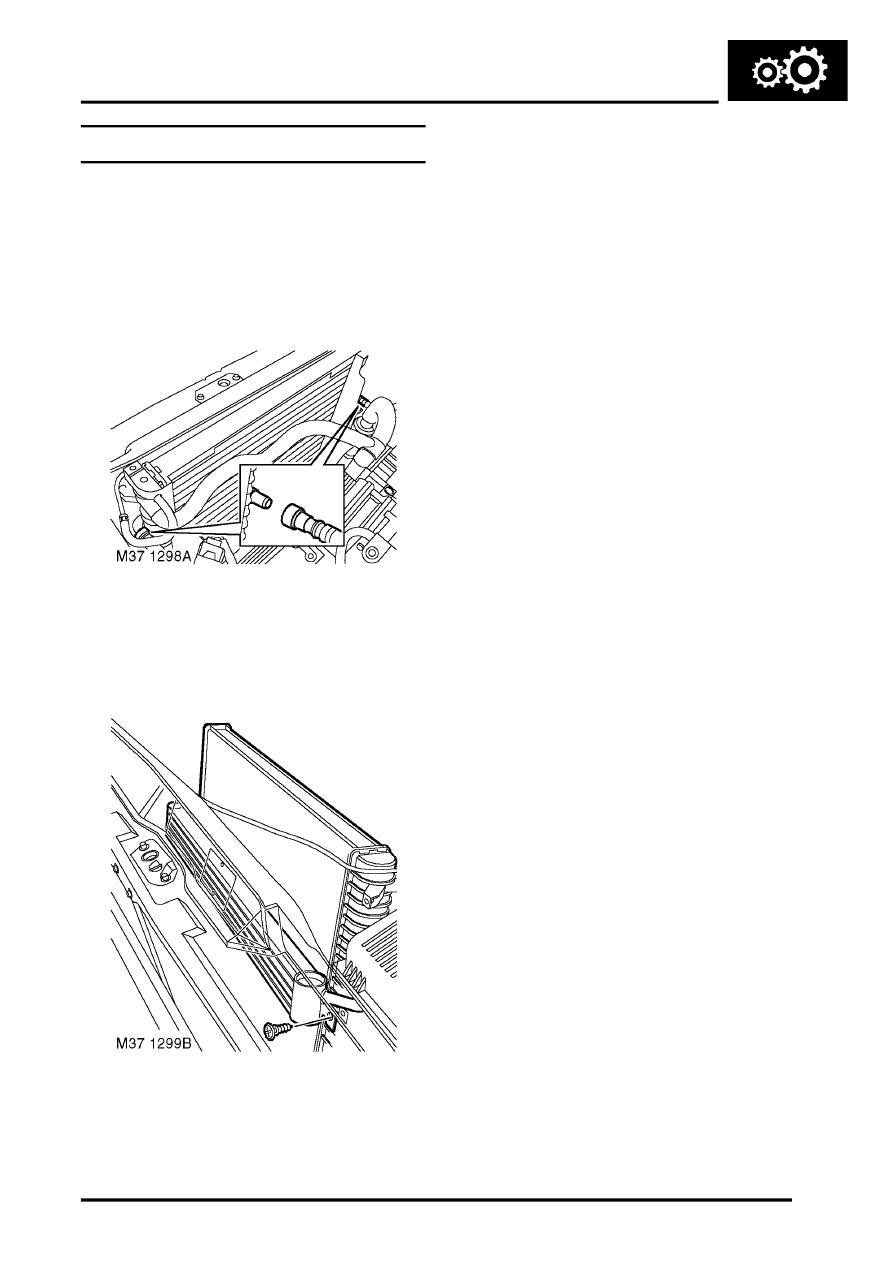

Remove
1. Remove intercooler.
2. Position absorbent cloth under each gearbox
oil cooler hose connection to collect spillage.
3. Push against coupling release ring and
disconnect both fluid hoses from oil cooler.
CAUTION: Always fit plugs to open
connections to prevent contamination.
4. Remove screw securing oil cooler to radiator.
5. Release oil cooler from location on radiator,
and remove the oil cooler.
CAUTION: Always fit plugs to open
connections to prevent contamination.
Refit
1. Fit oil cooler to radiator and secure with screw.
2. Ensure connections are clean and secure
hoses to cooler.
3. Fit intercooler.
4. Top up gearbox oil level.
