Discovery II
REAR SUSPENSION
64-40
REPAIRS

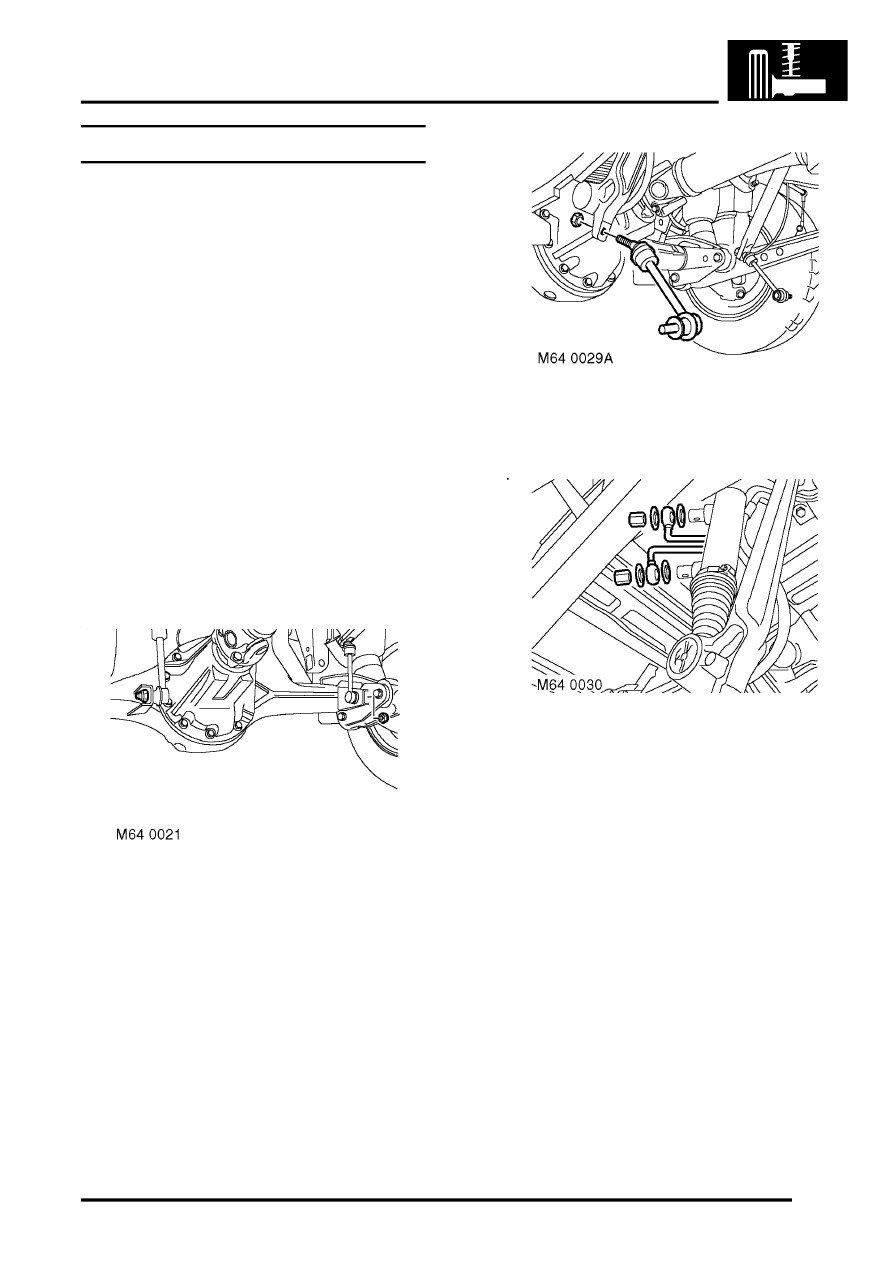

7. Use LRT-60-009 to remove nut securing
actuator push rod to long arm.
8. Remove nut and bolt securing actuator to short
arm and remove actuator.
CAUTION: The short arm and torsion bar
are supplied as an assembly and must not
be separated.
Refit
1. Position actuator and tighten nut and bolt
securing actuator to short arm to 180 Nm (133
lbf.ft).
2. Using LRT-60-009 , fit and tighten nut securing
actuator push rod to long arm to 48 Nm (35
lbf.ft).
3. Connect pipes to actuator with cap nuts and
new sealing washers. Tighten cap nuts to 29
Nm (21 lbf.ft). Ensure pipes are not under
tension or kinked.
4. Connect anti-roll bar link to long arm and
tighten nut to 50 Nm (37 lbf.ft).
5. Ensure washer is in place on lower ball joint of
each anti-roll bar link and connect lower ball
joints to axle. Tighten nuts to 100 Nm (74 lbf.ft).
6. Renew ACE high pressure filter.
7. Lower vehicle.
8. Bleed ACE hydraulic system.
