Discovery II
SEATS
REPAIRS 76-5-19
Bolster assembly - rear armrest
$% 78.20.02
Remove

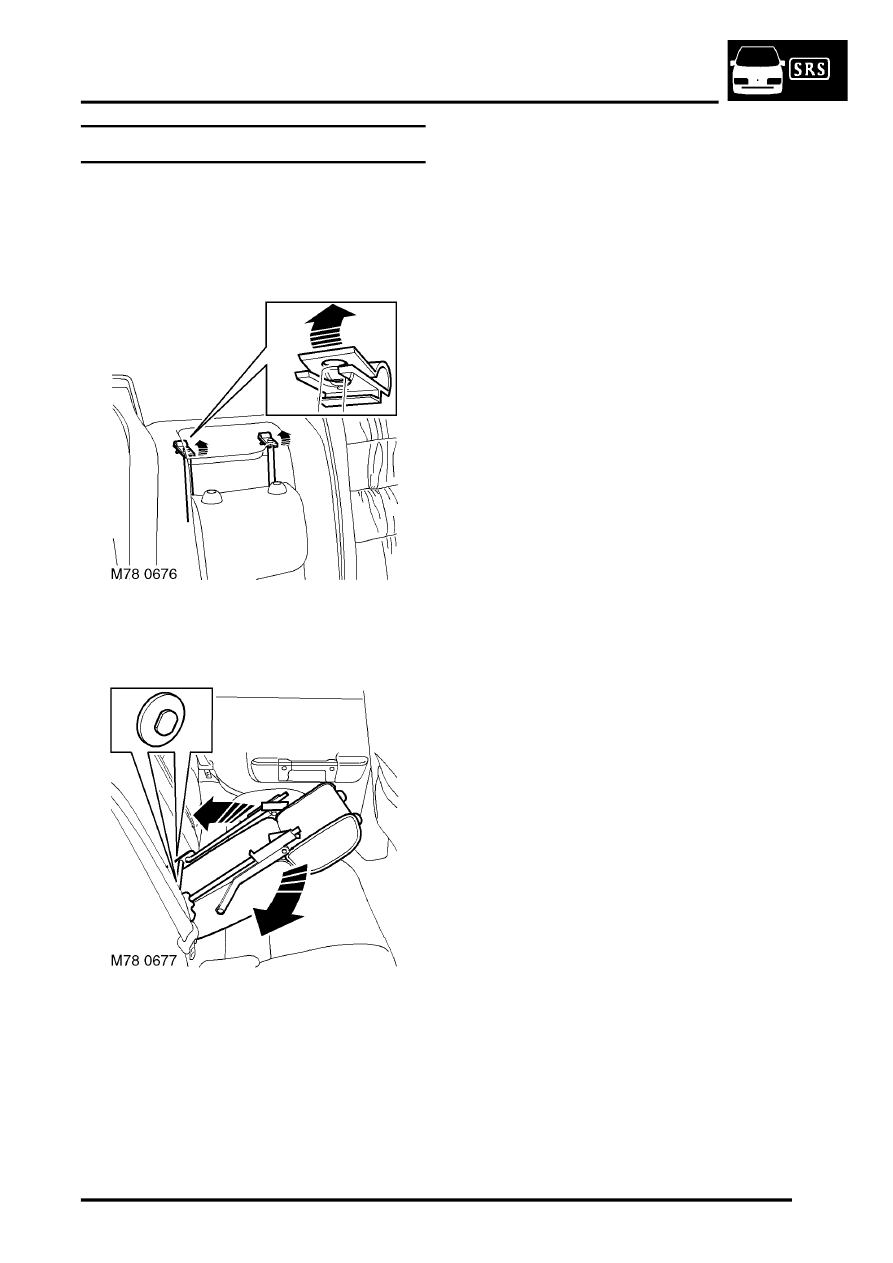

1. Raise rear seat centre headrest, release clips
securing headrest and remove.
2. Lower armrest and carefully release 2 upper
clips securing armrest bolster bars to seat
frame.
3. Release bolster bars from seat frame and raise
armrest to closed position.
4. Firmly grasp the armrest and bolster assembly,
using considerable force withdraw armrest
bolster assembly from seat frame pivots.
NOTE: During removal it is likely that one or
both armrest pivots will break.
5. Remove broken lower armrest pivots. NOTE:
Care must be used to ensure seat frame is not
distorted during pivot removal.
Refit
1. Fit and secure new armrest bolster pivots to
seat frame.
2. Fit new armrest and bolster assembly to lower
pivots, align and push fully home to lock.
3. Position bolster armrest assembly vertically,
align bars, fit and secure bolster bars to upper
seat frame clips.
4. Check operation of armrest assembly.
5. Fit and secure rear seat centre headrest.
