Discovery II
SEATS
76-5-32 REPAIRS

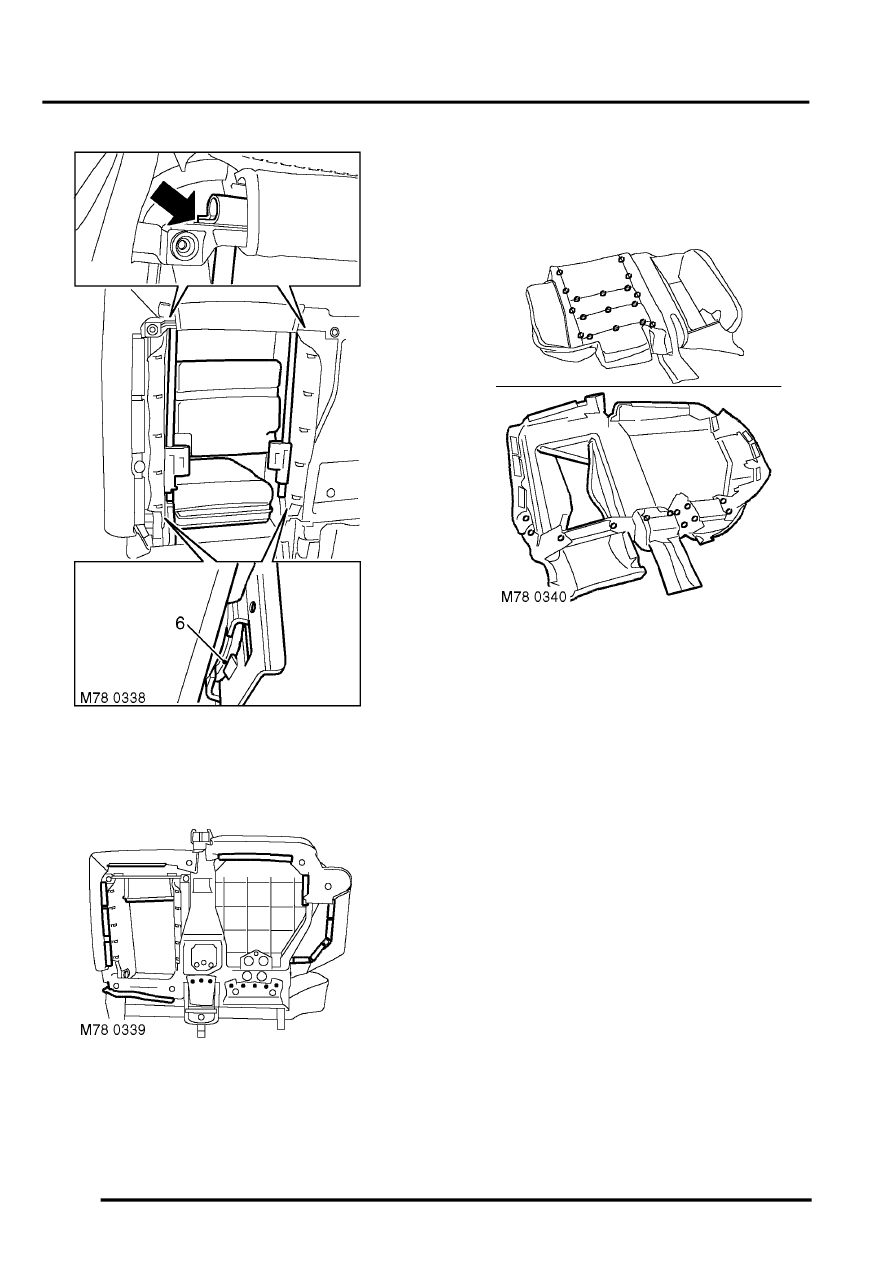

6. Release catches securing arm rest supports,
lower arm rest, release arm rest hinge catches
and remove arm rest assembly.
7. Release squab from 10 hooks in arm rest
recess.
8. Release top and bottom rap round clips in arm
rest recess.
9. Remove 3 studs securing squab to centre of
frame.
10. Release squab from 5 studs securing RH side.
11. Release 9 side clips securing squab to frame,
release and remove squab assembly.
12. Release squab from sides of pad to access
hog rings.
13. Remove 29 hogs rings and remove squab
cover from pad.
Refit
1. Position squab to pad and secure with hog
rings.
2. Position squab assembly to frame and secure
side clips.
3. Secure squab to hooks at RH side and fit studs
to centre of frame.
4. Fit top and bottom rap round clips and hooks in
arm rest recess.
5. Fit and secure arm rest assembly.
6. Position squab release lever, connect cable
and secure with screws.
7. Fit head restraint guide tubes.
8. Position end cover and secure with screws.
9. Fit centre rear seat belt.
10. Fit rear seat.
