Discovery II
SEATS
REPAIRS 76-5-17
4. Remove saddle bracket cover from lower rear
quarter to allow access to third row seat
securing bolts and nuts.
5. Remove top 2 bolts securing seat to lower rear
quarter panel.

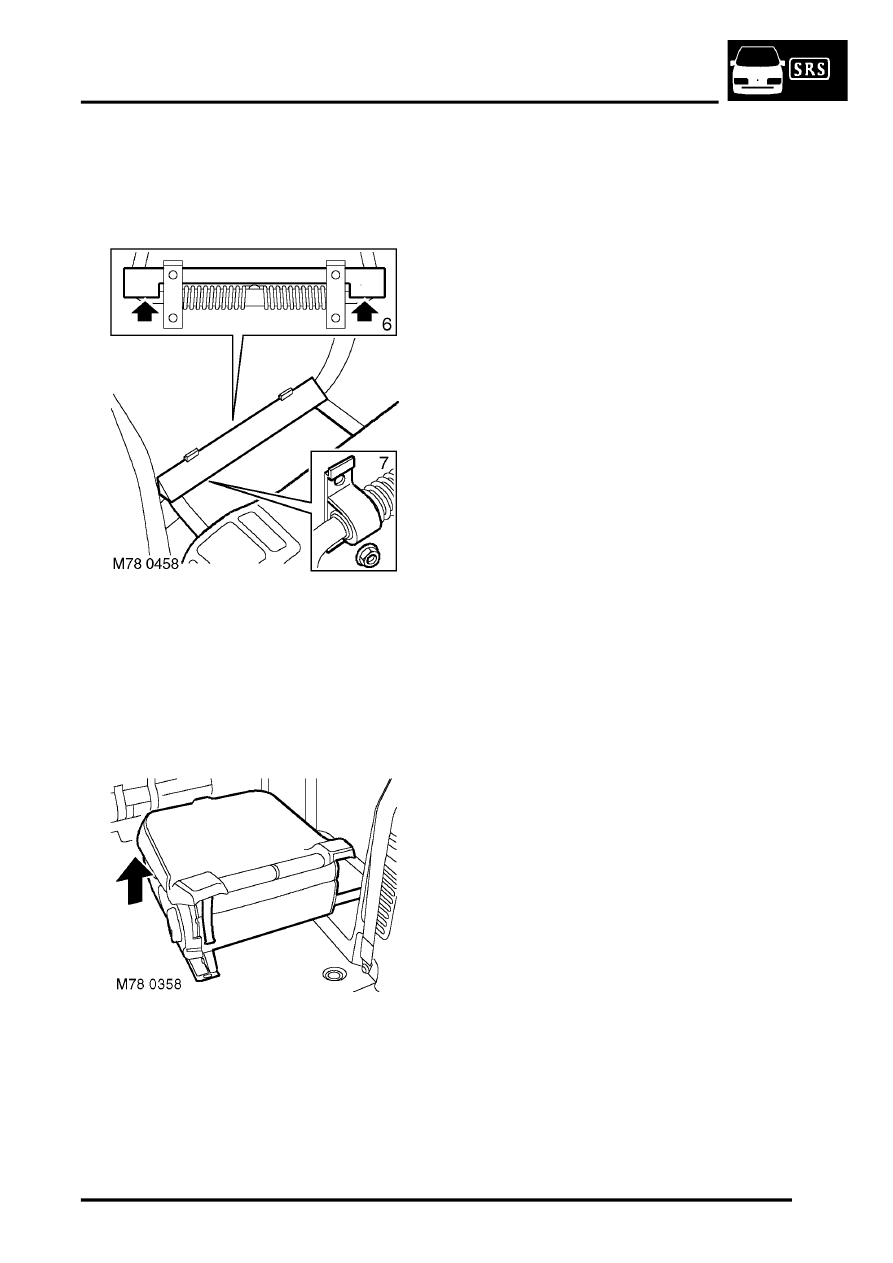

6. Position the locally manufactured retainer
bracket across the seat mounting. Ensure that
the lugs on the end of the retainer fit below the
seat mounting bar, then partially fold the seat
so that the retainer bracket is held in position.
7. Remove lower 2 nuts securing seat to lower
rear quarter panel. The action of the spring will
now hold the retainer bracket in place.
8. Remove seat.
Refit
1. Ensuring that the retainer bracket is in position
on the spring, position third row seat to its
mounting studs.
2. Fit nuts securing third row seat to lower rear
quarter panel and tighten to 22 Nm (16 lbf.ft).
3. Remove the retainer bracket, fit bolts securing
third row seat to lower rear quarter panel and
tighten to 22 Nm (16 lbf.ft).
4. Fit saddle bracket cover to third row seat
securing bolts, fit the cup holder (where
applicable) and stow the seat.
