Discovery II
TRANSFER BOX - LT230SE
OVERHAUL
41-69

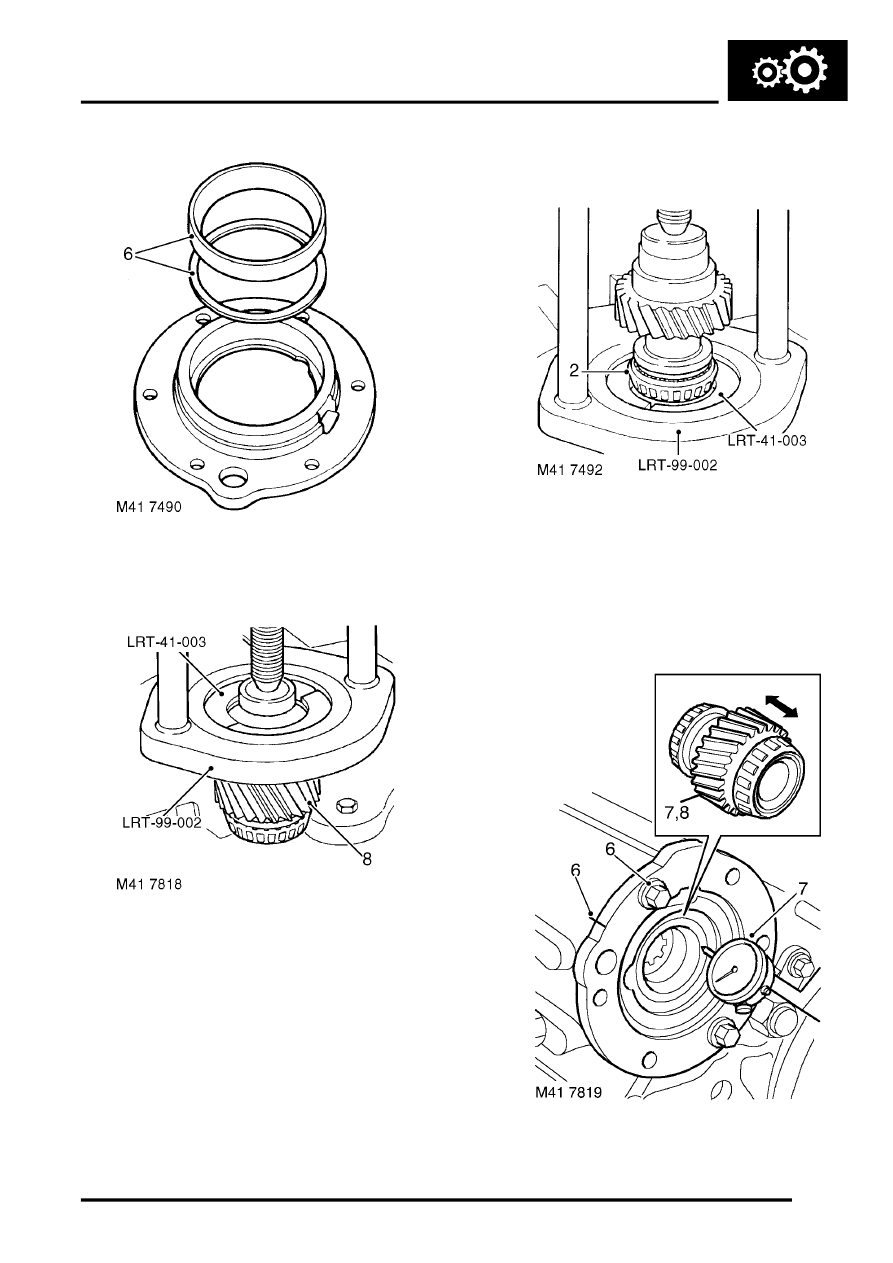

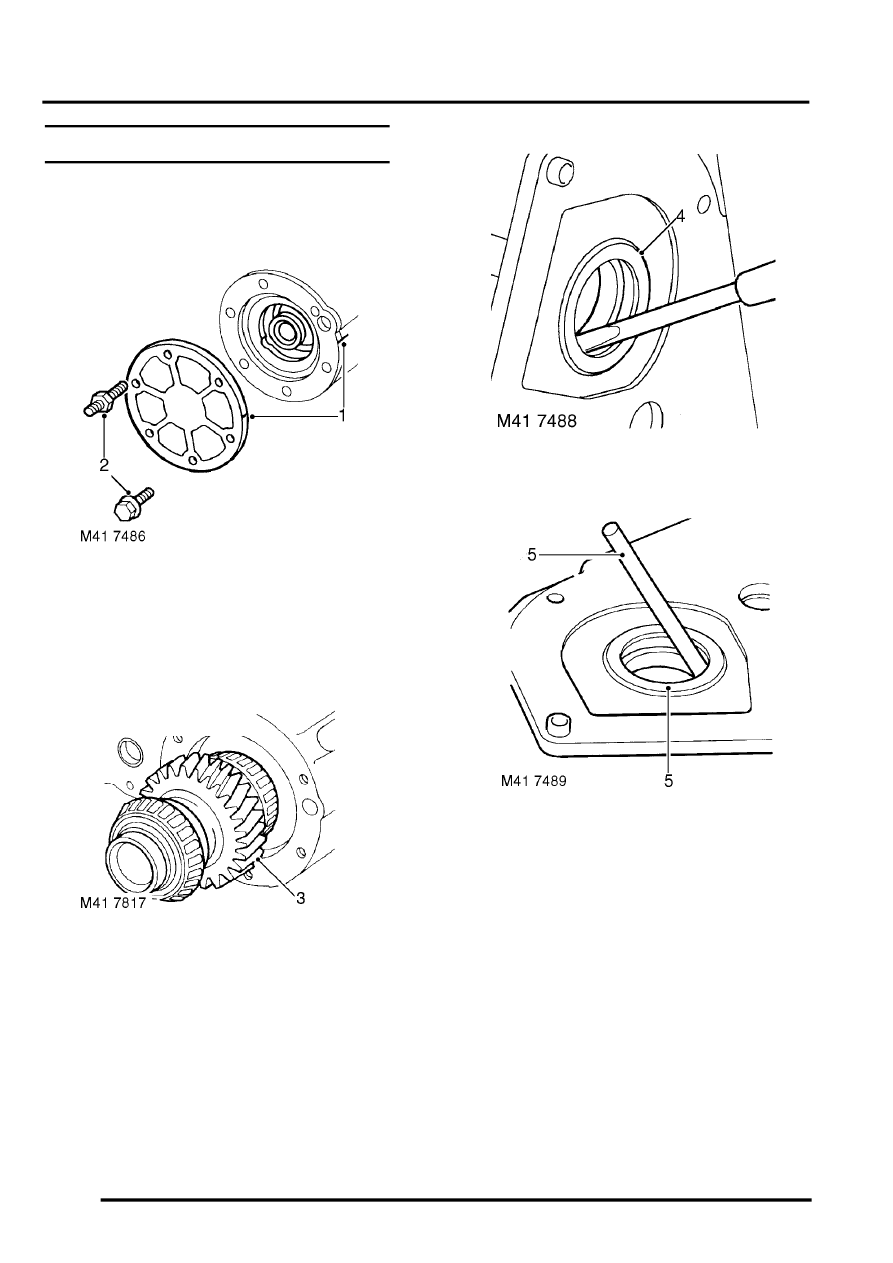

6. Drift out bearing track from housing and collect
selective shim.
7. Position tool LRT-99-002 to vice.
8. Assemble tool LRT-41-003 to bearing, position
input gear to hand press and remove bearing.
9. Repeat procedure for remaining bearing.
Reassembly
1. Clean input gear, cover/bearing housing and
main casing.
2. Using tool LRT-99-002 and LRT-41-003 fit
new bearings to input gear.
3. Using a suitable mandrel, fit bearing track to
main casing.
4. Fit a 3.15 mm (0.12 in) thick shim to bearing
housing and using a suitable mandrel fit
bearing track to housing.
5. Position input gear to main casing.
6. Fit bearing housing, ensuring reference marks
are aligned, secure bearing housing with 2
bolts and tighten to 25 Nm (18 lbf.ft).
