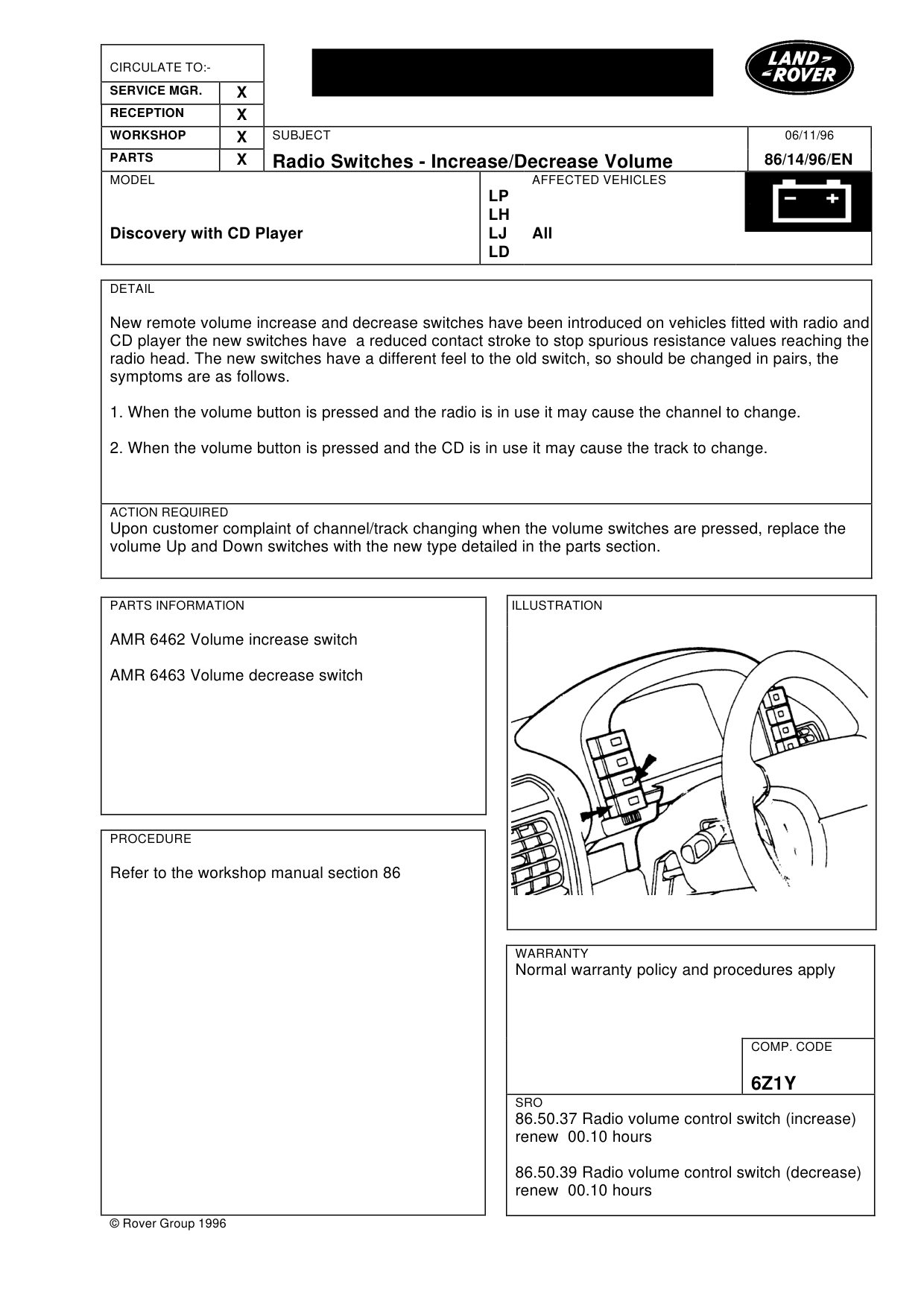

Radio switches increase/decrease volume

RADIO SWITCHES INCREASE/DECREASE VOLUME

Model

Discovery with CD Player

Affected vehicles

All

Date

1996-11-06

Reference

06/11/96

Bulletin text

Radio Switches - Increase/Decrease Volume

MODEL

Discovery with CD Player

DETAIL

New remote volume increase and decrease switches have been introduced on vehicles fitted with radio and CD player the new switches have a reduced contact stroke to stop spurious resistance values reaching the radio head. The new switches have a different feel to the old switch, so should be changed in pairs, the symptoms are as follows.

1. When the volume button is pressed and the radio is in use it may cause the channel to change.

2. When the volume button is pressed and the CD is in use it may cause the track to change.

ACTION REQUIRED

Upon customer complaint of channel/track changing when the volume switches are pressed, replace the volume Up and Down switches with the new type detailed in the parts section.

PARTS INFORMATION

AMR 6462 Volume increase switch

AMR 6463 Volume decrease switch

PROCEDURE

Refer to the workshop manual section 86

© Rover Group 1996

06/11/96

86/14/96/EN

AFFECTED VEHICLES

LP LH LJ All LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

6Z1Y

SRO

86.50.37 Radio volume control switch (increase) renew 00.10 hours

86.50.39 Radio volume control switch (decrease) renew 00.10 hours
