REPAIR
NOTE: On current models the generator
cover is omitted.

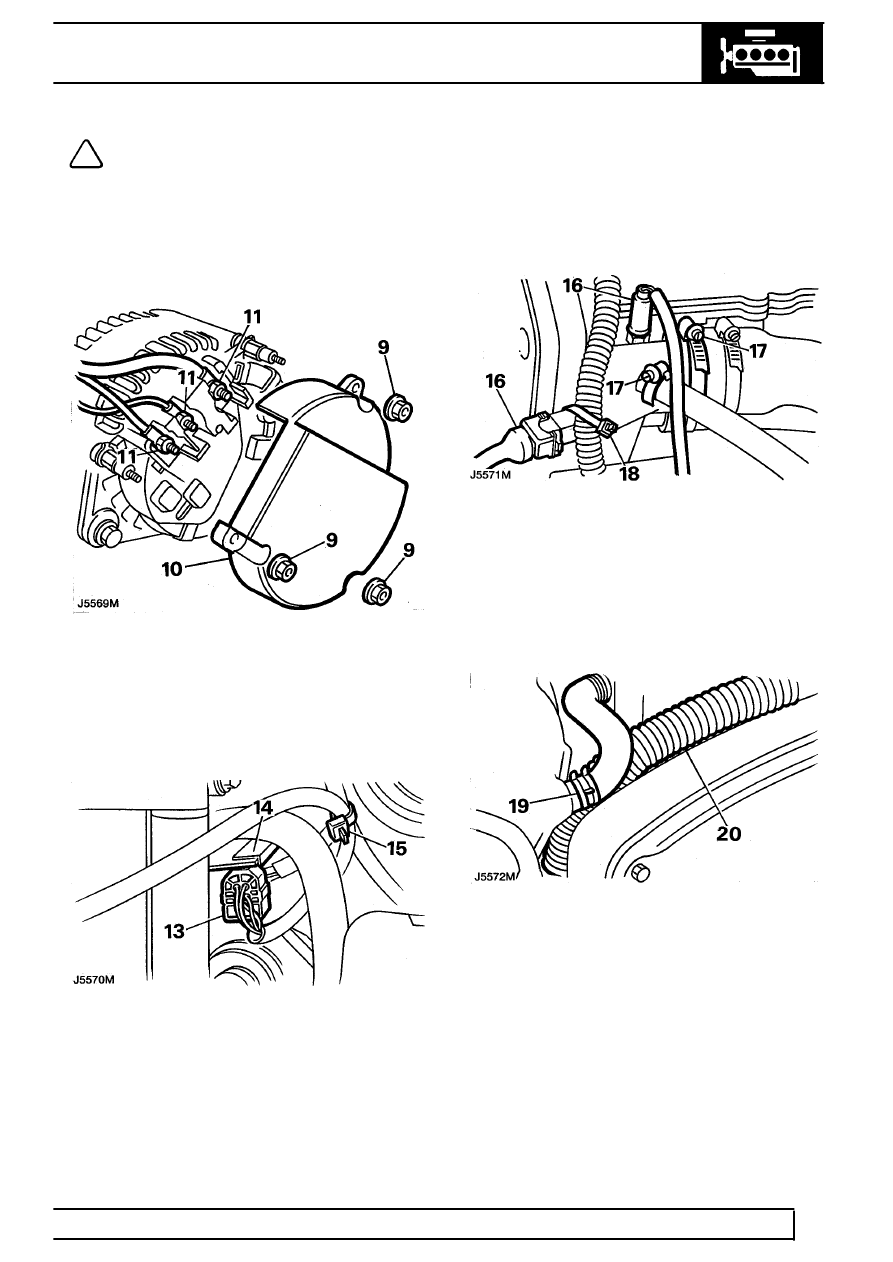

9. Remove 3 nuts securing generator rear cover.
10. Remove rear cover.
11. Remove 3 nuts securing harness to generator.
12. Remove harness.
13. Disconnect oxygen sensor multiplug.
14. Release multiplug from bracket.
15. Release harness from cable tie.
16. Disconnect 2 coolant temperature sensor
multiplugs.
17. Release clips and disconnect the bypass and
top hose.
18. Release harness lead from cable tie.
19. Release clip and disconnect breather hose from
inlet manifold.
20. Feed harness between inlet manifold and cam
cover.
