BodyDoor striker - check and adjust

DOOR STRIKER - CHECK AND ADJUST

Service repair no - 76.28.05

Check

  1. A closed door should be flush with adjacent panels and edges have equal gap.

Adjust

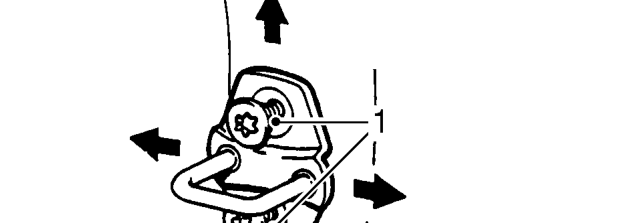

Door striker - check and adjust – A closed door should be flush with adjacent panels and edges have equal gap.
  1. Loosen 2 Torx screws securing striker.
  2. Adjust striker to obtain required door to panel fit and open and close operation.
  3. Tighten Torx screws to 10 Nm.
