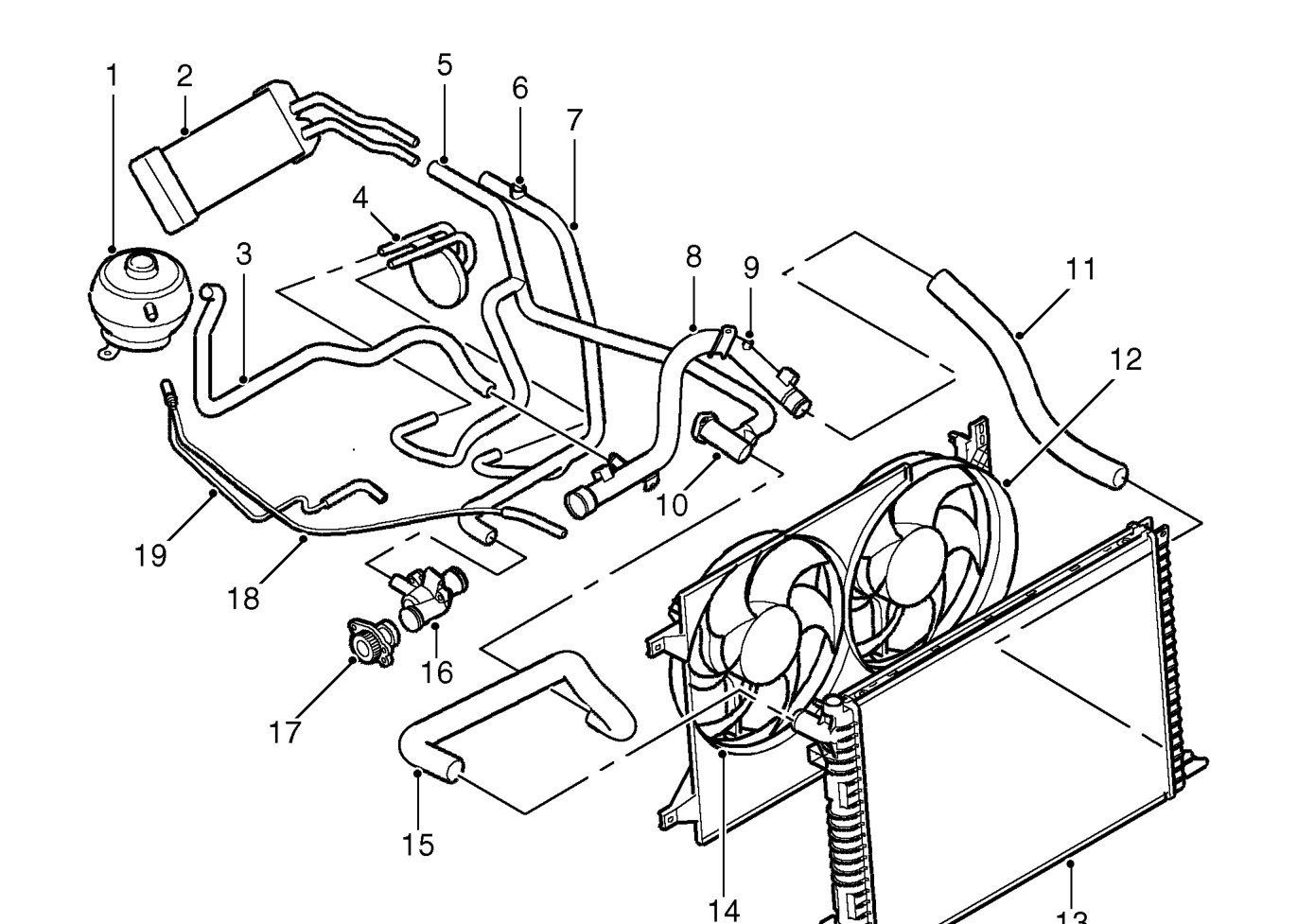

COOLING SYSTEM COMPONENTS

1. Expansion tank
2. Heater matrix
3. Hose - Expansion tank to coolant pipe
4. IRD Cooler
5. Hose - Heater inlet
6. Bleed screw
7. Hose - Heater outlet
8. Coolant inlet pipe
9. Bleed screw
10. Coolant outlet pipe
11. Hose - Radiator bottom
12. Air conditioning condenser fan (if fitted)
13. Radiator
14. Cooling fan
15. Hose - Radiator top
16. Thermostat housing
17. Water pump
18. Bleed hose
19. Bleed hose
