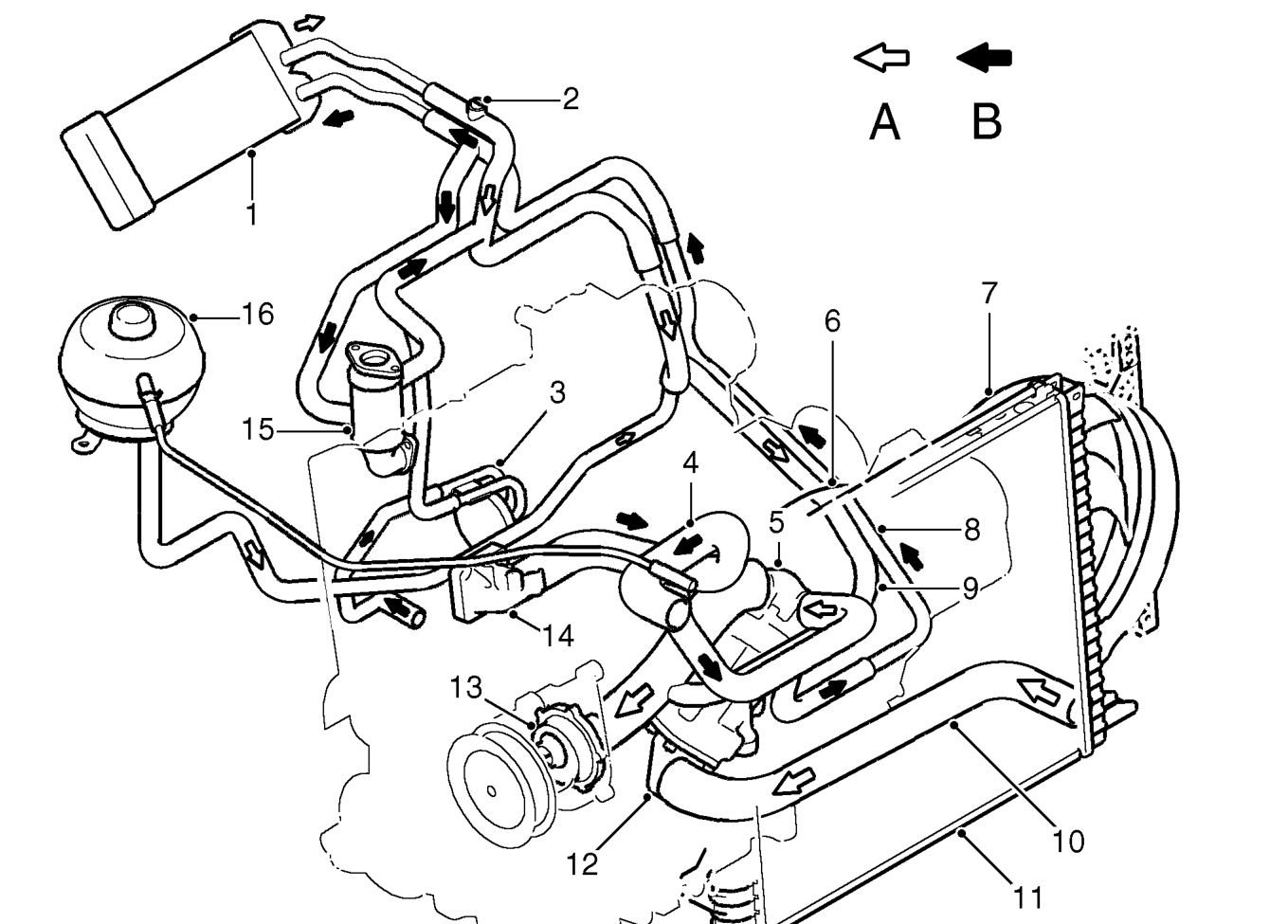

COOLING SYSTEM OPERATION

A = COLD B = HOT

1. Heater matrix
2. Bleed screw
3. IRD cooler
4. Radiator top hose
5. Oil cooler
6. Fan - radiator cooler
7. Fan - radiator cooling/Air Con (if fitted)
8. Heater feed hose/pipe
9. Heater return hose
10. Radiator bottom hose
11. Radiator
12. Thermostat
13. Coolant pump
14. Outlet elbow
15. EGR cooler
16. Expansion tank
