Drive shaftsDrive/propeller shafts

DRIVE/PROPELLER SHAFTS

Drive shafts transmit drive from the intermediate reduction drive (IRD) to the front wheels, and from

Two propeller shafts and a viscous coupling unit (VCU) transmit drive from theIRD to the final drive unit.

the final drive unit to the rear wheels.

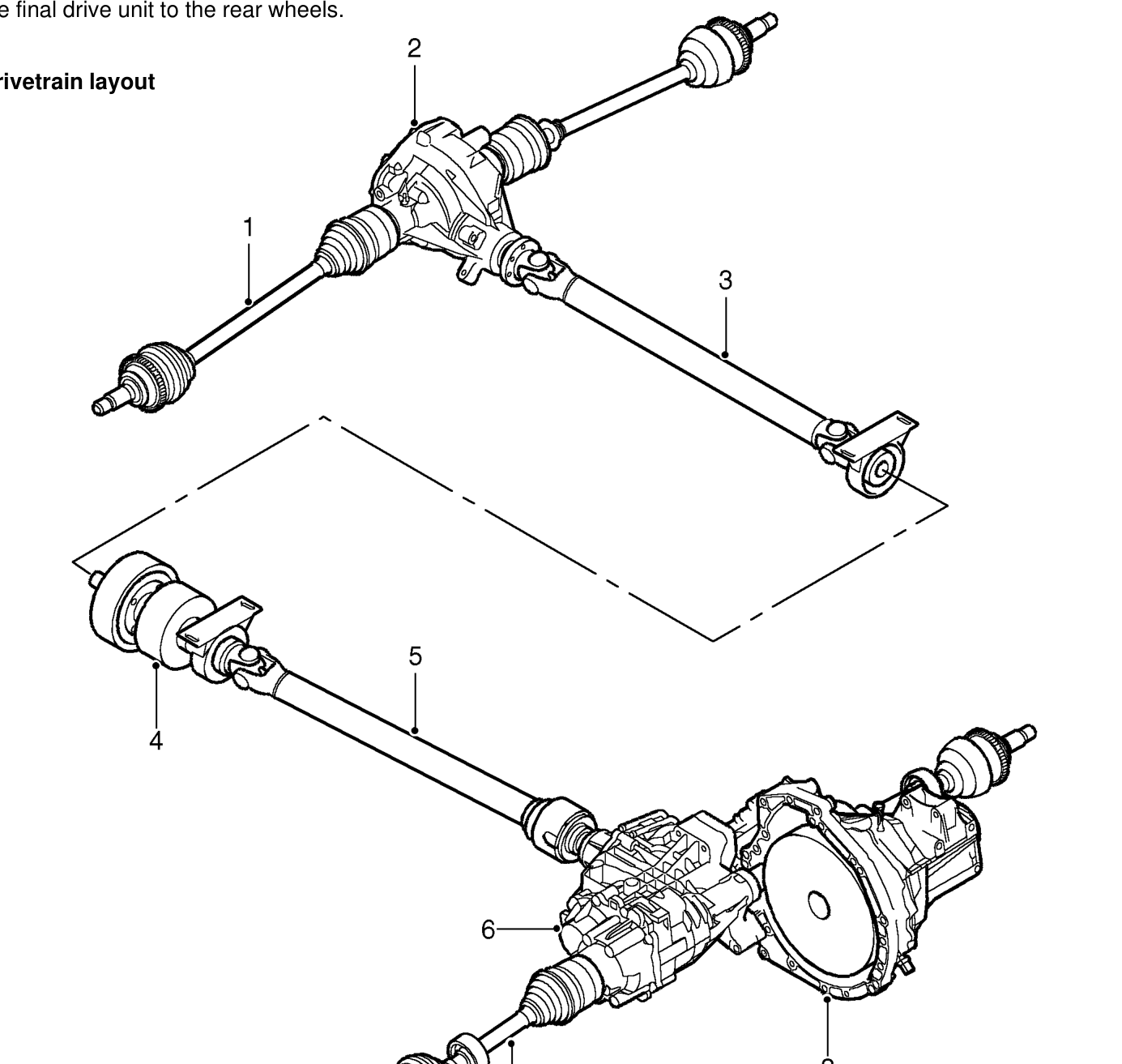

Drivetrain layout

1. Rear drive shaft
2. Final drive unit
3. Rear propeller shaft
4. Viscous coupling unit
5. Front propeller shaft
6. Intermediate reduction drive
7. Front drive shaft
8. Gearbox
