Timing belt components (Engine - K Series)

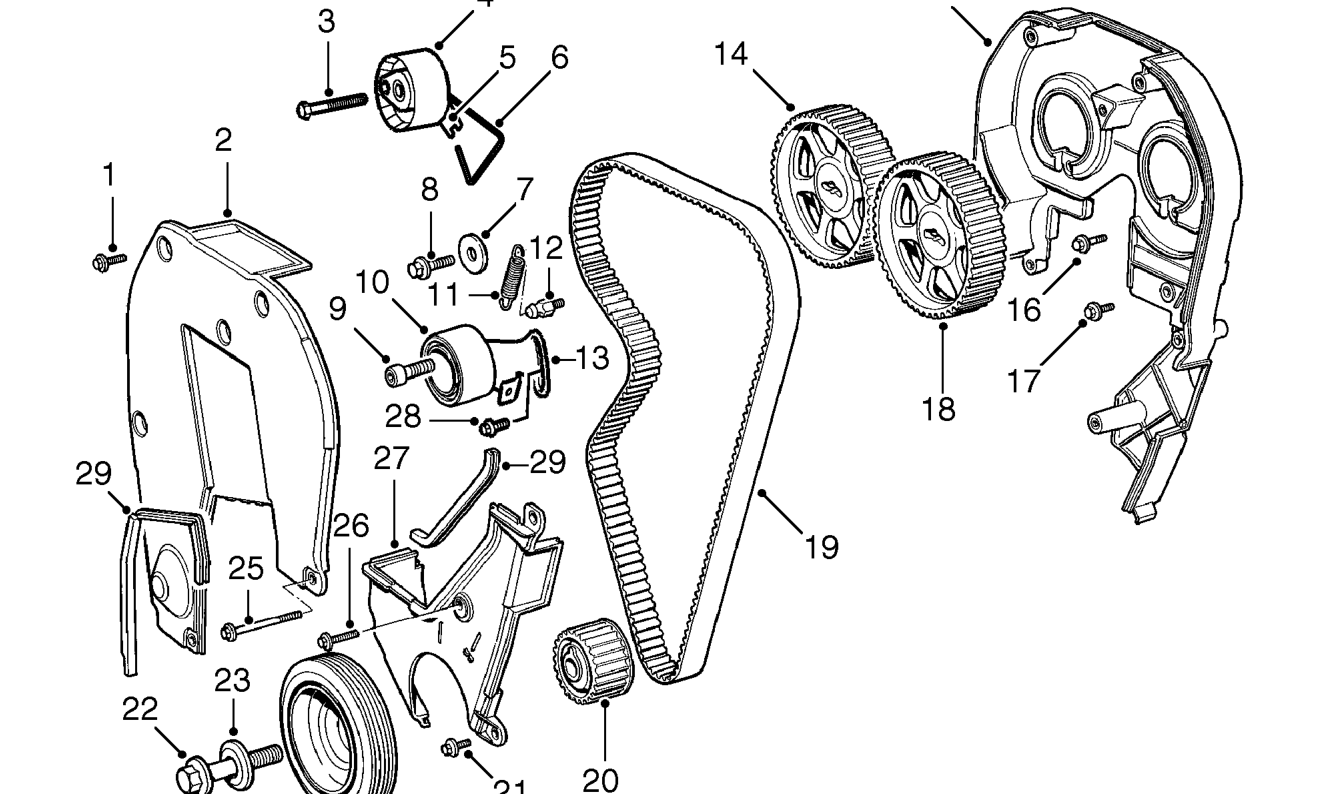

TIMING BELT COMPONENTS

1. Screw - M6 - timing belt upper front cover
2. Timing belt upper front cover
3. Bolt - Patchlok - automatic timing belt tensioner
4. Automatic timing belt tensioner
5. Pointer
6. Index wire
7. Plain washer
8. Camshaft gear bolt
9. Allen screw - manual timing belt tensioner
10. Pulley - manual timing belt tensioner
11. Tensioner spring - manual timing belt tensioner
12. Pillar bolt - manual timing belt tensioner
13. Backplate - manual timing belt tensioner
14. Inlet camshaft gear
15. Timing belt rear cover
16. Screw - rear cover to cylinder head
17. Screw - rear cover to cylinder head
18. Exhaust camshaft gear
19. Camshaft timing belt
20. Crankshaft timing gear
21. Screw - timing belt lower cover
22. Crankshaft pulley bolt
23. Special washer - crankshaft pulley bolt
24. Crankshaft pulley
25. Bolt - M6 x 90 - upper front and lower covers
26. Screw - lower cover
27. Timing belt lower cover
28. Bolt - manual timing belt tensioner backplate
29. Sealing strips - upper front and lower covers
