Front suspension component locations
- Make
- Land Rover
- Model
- Freelander Workshop Manual
- Year
- 1998–2000
- Section
- Description and operation › Front suspension component locations
Front suspensionFront suspension component locations

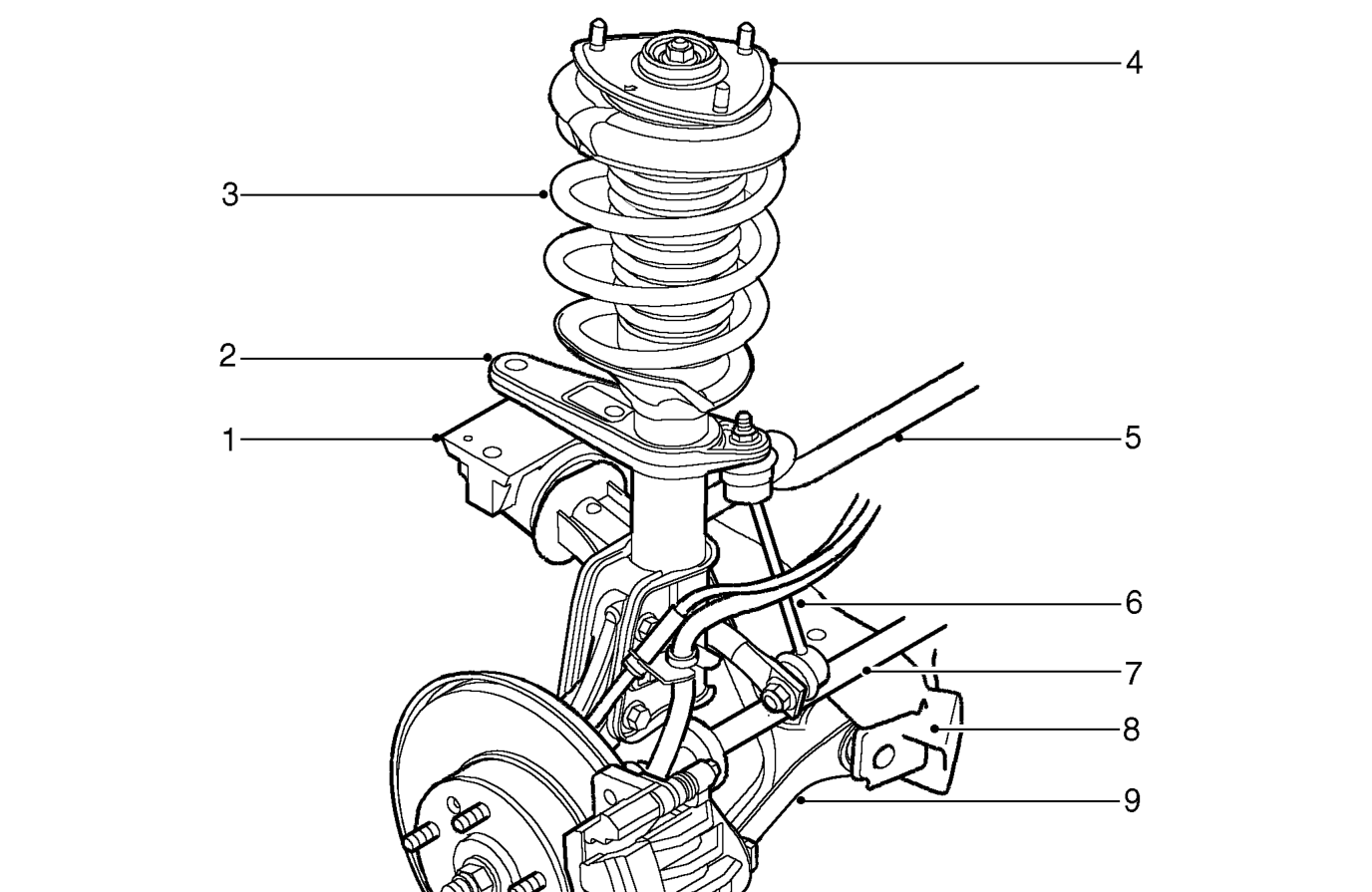

FRONT SUSPENSION COMPONENT LOCATIONS
RH Front suspension shown - LH is mirror image
- Bush and housing assembly
- Damper
- Road spring
- Top mount
- Anti-roll bar
- Anti-roll bar link
- Drive shaft
- Front subframe
- Lower arm
- Brake caliper and hub assembly
