Identification number locations

IDENTIFICATION NUMBER LOCATIONS

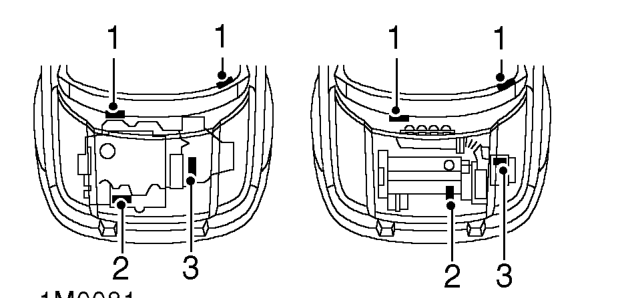

1. Vehicle identification number 2. Engine number 3. Gearbox number

Vehicle Identification Number

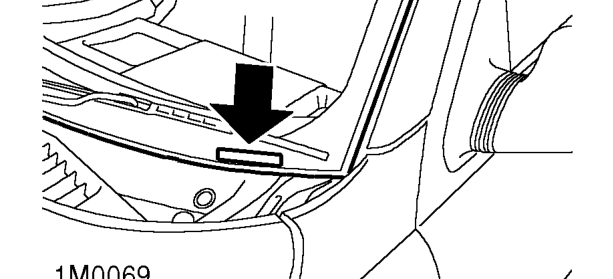

The VIN is displayed at the centre top of the engine bulkhead and on a plate behind the LH lower corner of the windscreen.

Engine number

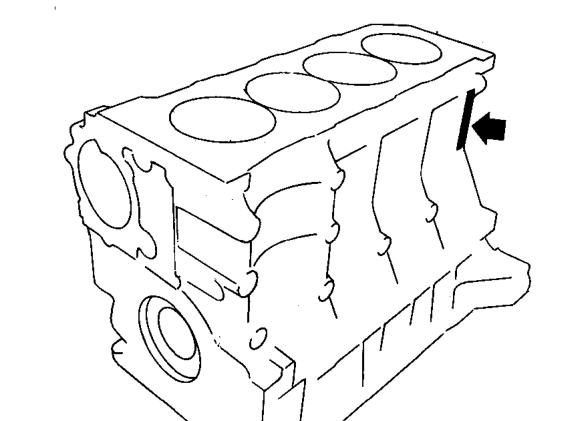

1.8 ’K’ Series Engine: Stamped on the front face of the cylinder block adjacent to the gearbox.

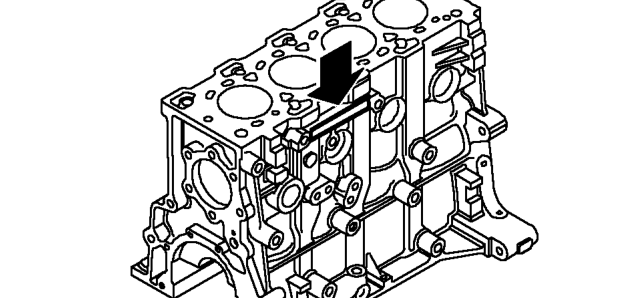

2.0 ’L’ Series Engine: Stamped on the front face of the cylinder block at top centre.

Gearbox number (3)

Manual Gearbox - PG1: Stamped on a label attached to the front face of the clutch housing.
