Lubrication

LUBRICATION

The engine and other lubricating systems are filled with high- performance lubricants giving prolonged life.

CAUTION: You should always use a high quality oil of the correct viscosity range in the engine and gearbox during maintenance and when topping-up. The use of oil not to the correct specification can lead to high oil and fuel consumption and ultimately to damaged components.

Oil to the correct specification contains additives which disperse the corrosive acids formed by combustion and prevent the formation of sludge which can block the oil ways. Additional oil additives should not be used. Always adhere to the recommended servicing intervals.

Engine oil

Petrol vehicles

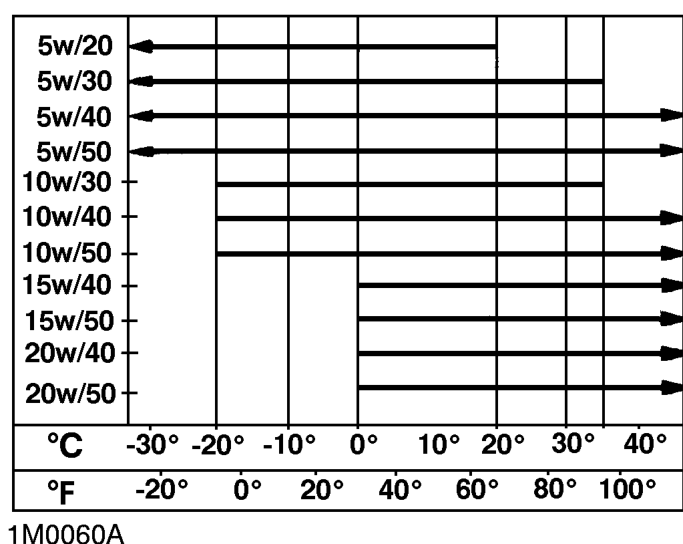

Use oil meeting ACEA A2 specification and having a viscosity band recommended for the temperature range of your locality. Where oils to these Land Rover and European specifications are not available, well known brands of oils meeting API SH quality should be used.

Diesel vehicles

Use oil meeting specification ACEA B2 and having a viscosity band recommended for the temperature range of your locality. Where oils to these Land Rover and European specifications are not available, well known brands of oils meeting API SG,SN or SG/Cd quality should be used.

Manual gearbox - PG1

Use the following oils for refill or topping-up: TEXACO MTF 94

The following oils may be used for topping-up only: Use oil meeting the requirments of ACEA A2 and a viscosity of 10W/40. Fill level to plug.

Intermediate Reduction Drive

Factory Fill: Texaco S5 75W90 Specification: API GL5

Rear Differential

Factory Fill: Texaco Multigear 80W-90 ETL 7441 Specification: API GL5

Power Steering TOPPING-UP: Use Dexron IIde & III or equivalent

Gear linkage - Manual

Use grease Part No. AFU 1500 containing 3% Molybdenum Disulphide.

General Greasing

Use Multipurpose Lithium Base Grease N.L.G.I. consistency No. 2.

Bonnet latch

Lubricate cable and latch with oil.

Locks, Latches and Hinges

Use Door Lock and Latch Lubricant, Part No. VWN 10075.
