Rear suspension component locations
- Make
- Land Rover
- Model
- Freelander Workshop Manual
- Year
- 1998–2000
- Section
- Description and operation › Rear suspension component locations
Rear suspensionRear suspension component locations

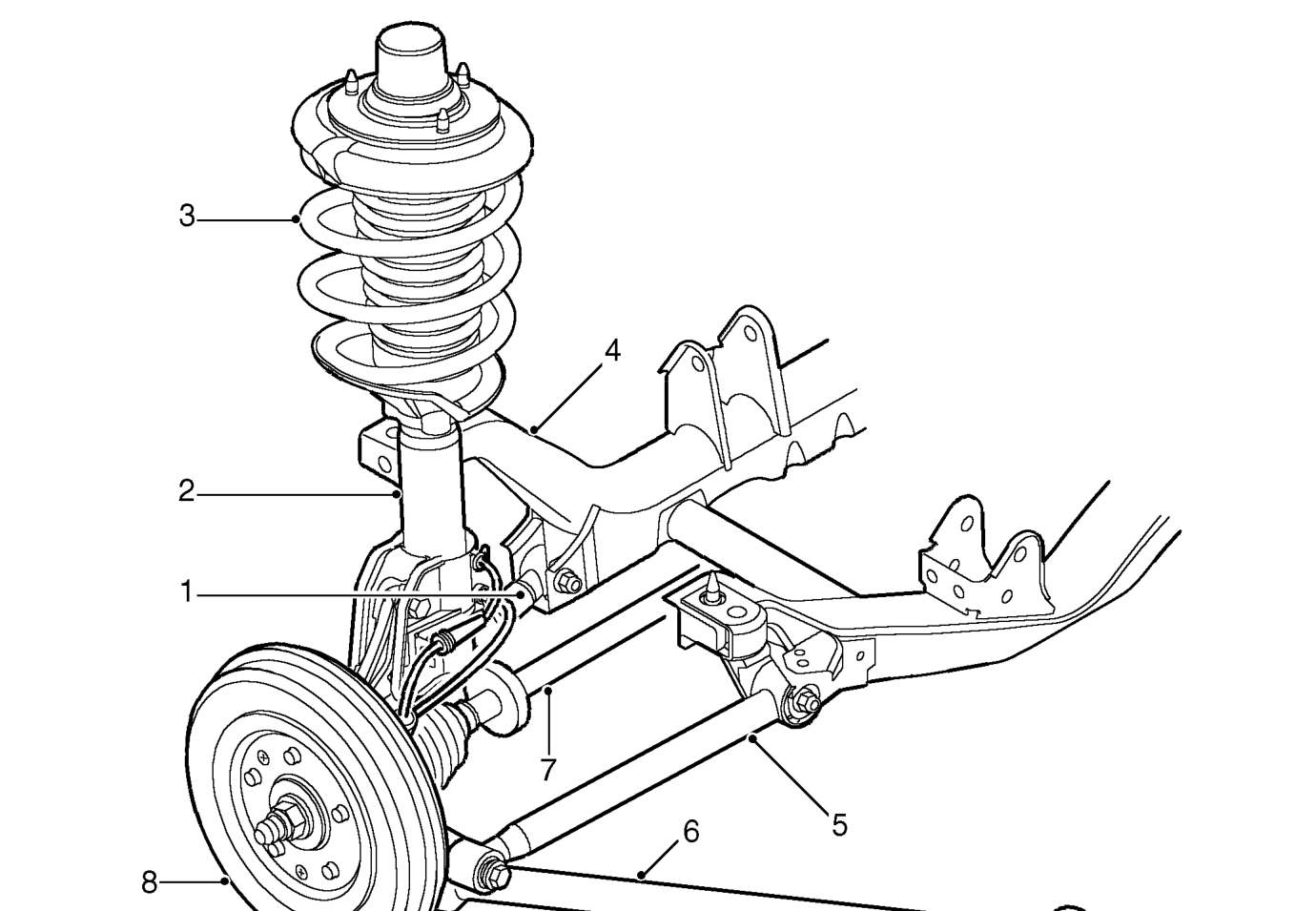

REAR SUSPENSION COMPONENT LOCATIONS
RH Rear suspension shown - LH is mirror image
- Adjustable transverse link
- Damper
- Road spring
- Rear subframe
- Fixed transverse link
- Trailing link
- Drive shaft
- Brake and hub assembly
