Seat belts & supplementary restraint system (Restraint systems)

SEAT BELTS & SUPPLEMENTARY RESTRAINT SYSTEM

Seat belts are provided as the primary restraint for all occupants. The supplementary restraint system provides additional protection for front seat occupants.

SEAT BELTS

An inertia reel, three point seat belt is installed at each seat position. The inertia reels are of the Emergency Locking Retractor (ELR) type which incorporate a liftshaft locking system with webbing sensor and car sensor activating mechanisms. The webbing sensor activates the locking system if the

Front seat belt components

webbing is subjected to a sharp pull. The car sensor activates the locking system if the vehicle is subjected to sudden deceleration or a severe tilt angle.

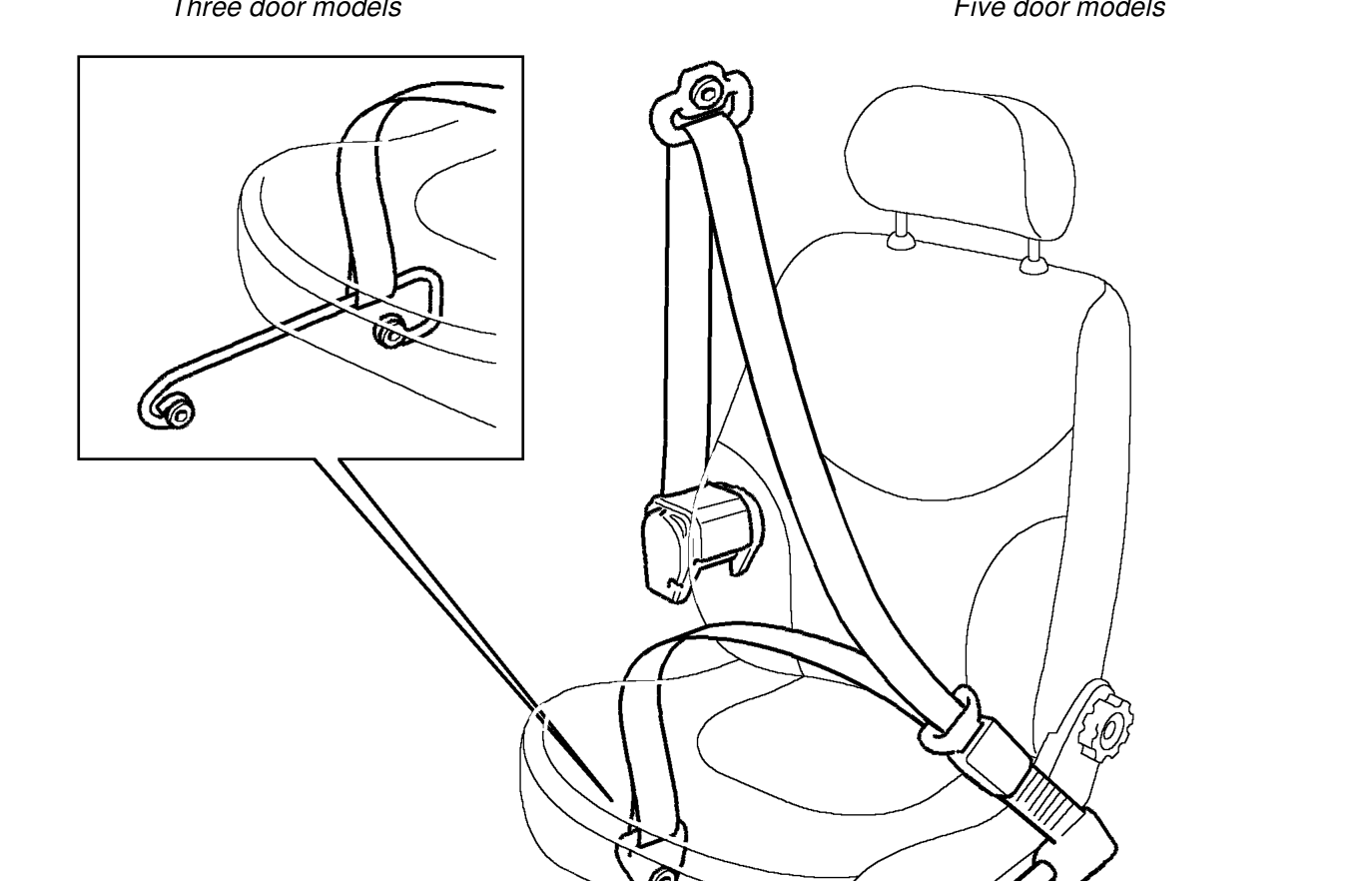

Front seat belts

The inertia reel of each front seat belt is attached to the related B/C post, behind the finishers. The webbing runs from the inertia reel, through a height adjuster, to an anchor point either at the base of the B/C post (five door models), or on a bar attached to the inner sill (three door models).

The buckle assembly for each belt, consisting of a buckle attached to a flexible stalk and an integrated pretensioner, is secured to the inboard side of the related front seat frame.

Three door models Five door models
