POWER STEERING SYSTEM - PRESSURE TEST

Service repair no - 57.90.10/01

Test Equipment - Assembly

  1. Position cloth to collect PAS fluid spillage.

’K’ Series

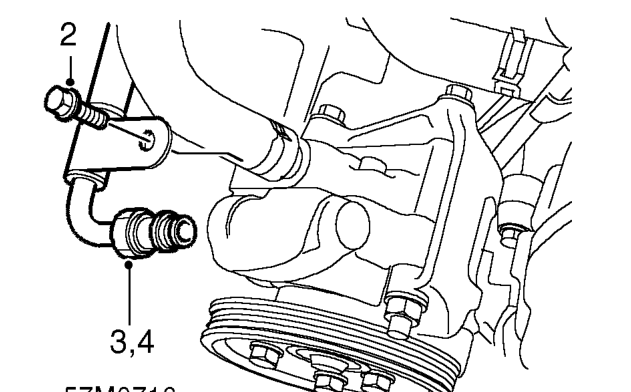

’k’ series – Position cloth to collect PAS fluid spillage.
  1. Remove bolt securing PAS high pressure pipe clip to PAS pump.
  2. Loosen union nut securing high pressure pipe to PAS pump.
  3. Disconnect high pressure pipe from PAS pump.
’k’ series – Disconnect high pressure pipe from PAS pump.

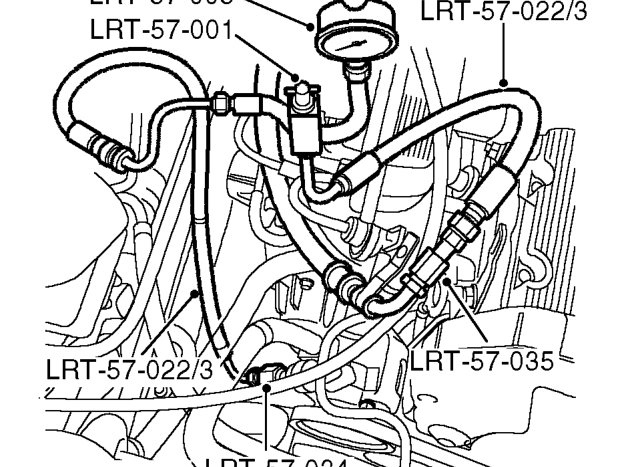

  1. Fit adaptor LRT-57-034 to high pressure port of PAS pump.
  2. Fit adaptor LRT-57-035 to existing high pressure hose.

’L’ Series

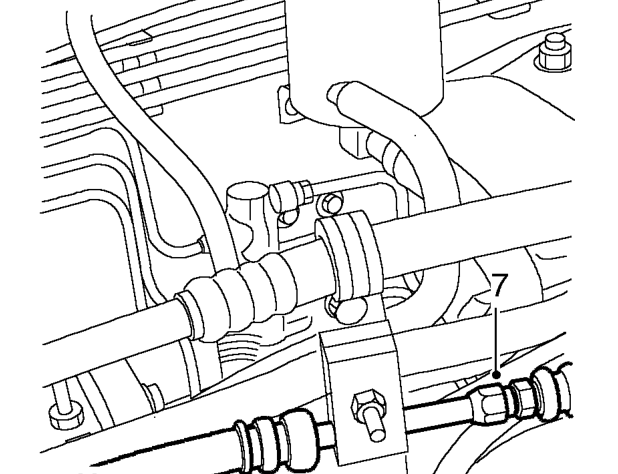

’l’ series – Fit adaptor LRT-57-035 to existing high pressure hose.
  1. Loosen union nut and disconnect high pressure pipe at support bracket on RH engine mounting.
  2. Fit adaptor LRT-57-032 to pipe from PAS pump.
  3. Fit adaptor LRT-57-033 to existing high pressure hose.
