Wipers & washersWindscreen wiper components

WINDSCREEN WIPER COMPONENTS

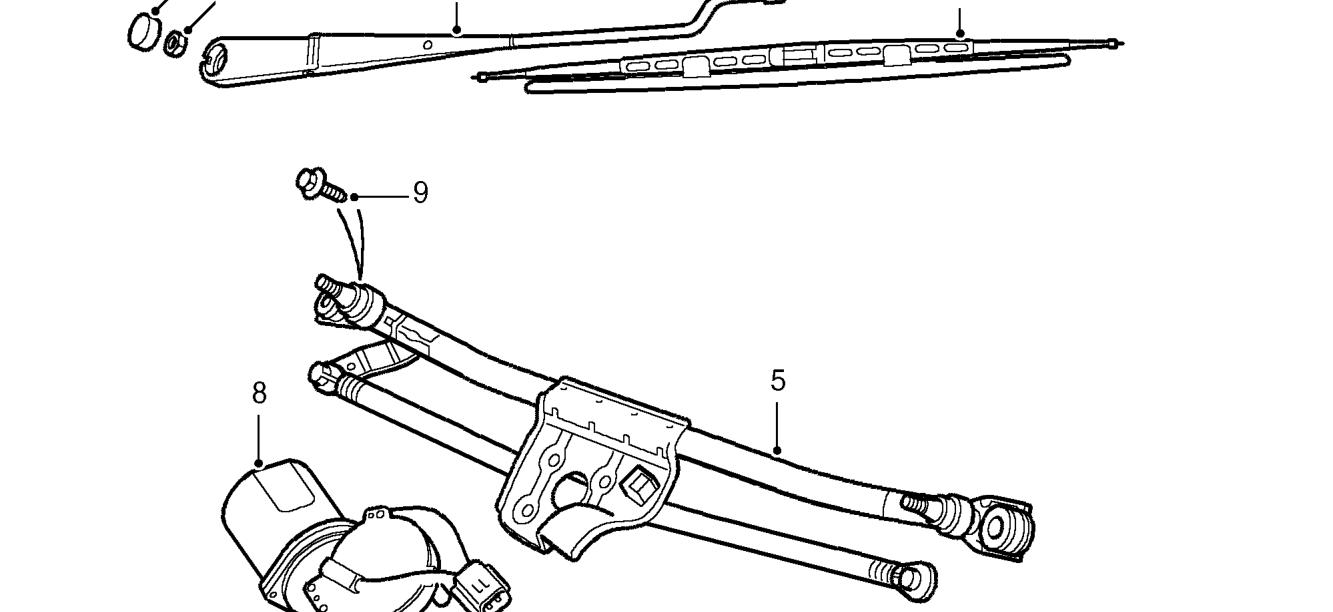

Windscreen wiper components

RHD shown, LHD mirror image

  1. Cap 2 off
  2. Nut 2 off
  3. Wiper arm 2 off
  4. Wiper blade 2 off
  5. Wiper link assembly
  6. Motor mounting bolt 3 off
  7. Nut and washer, spindle to link
  8. Wiper motor
  9. Mounting bolt 3 off
