BRAKES
REPAIRS
70-15
8. Fit pads to calliper bracket.
The leading edge of the pads have chamfers
on them, the chamfers are asymmetric. It is
imperative that the pads are correctly fitted.
Pad 'A' in illustration must be fitted to the
inboard side of the calliper. Pad 'B' must be
fitted to the outboard side of the calliper.
Illustration shows a LH pair of pads.
9. Lower calliper housing over pads.
10. Ensure flats on guide pins locate with lugs on
calliper housing. Fit bolts and tighten to 27 Nm
(20 lbf.ft).
11. Repeat procedure for other side.
12. Fit road wheel(s) and tighten nuts to 115 Nm
(85 lbf.ft).
13. Remove stands and lower vehicle.
14. Depress brake several times to set pad to disc
clearance.
15. Check and top-up brake fluid.

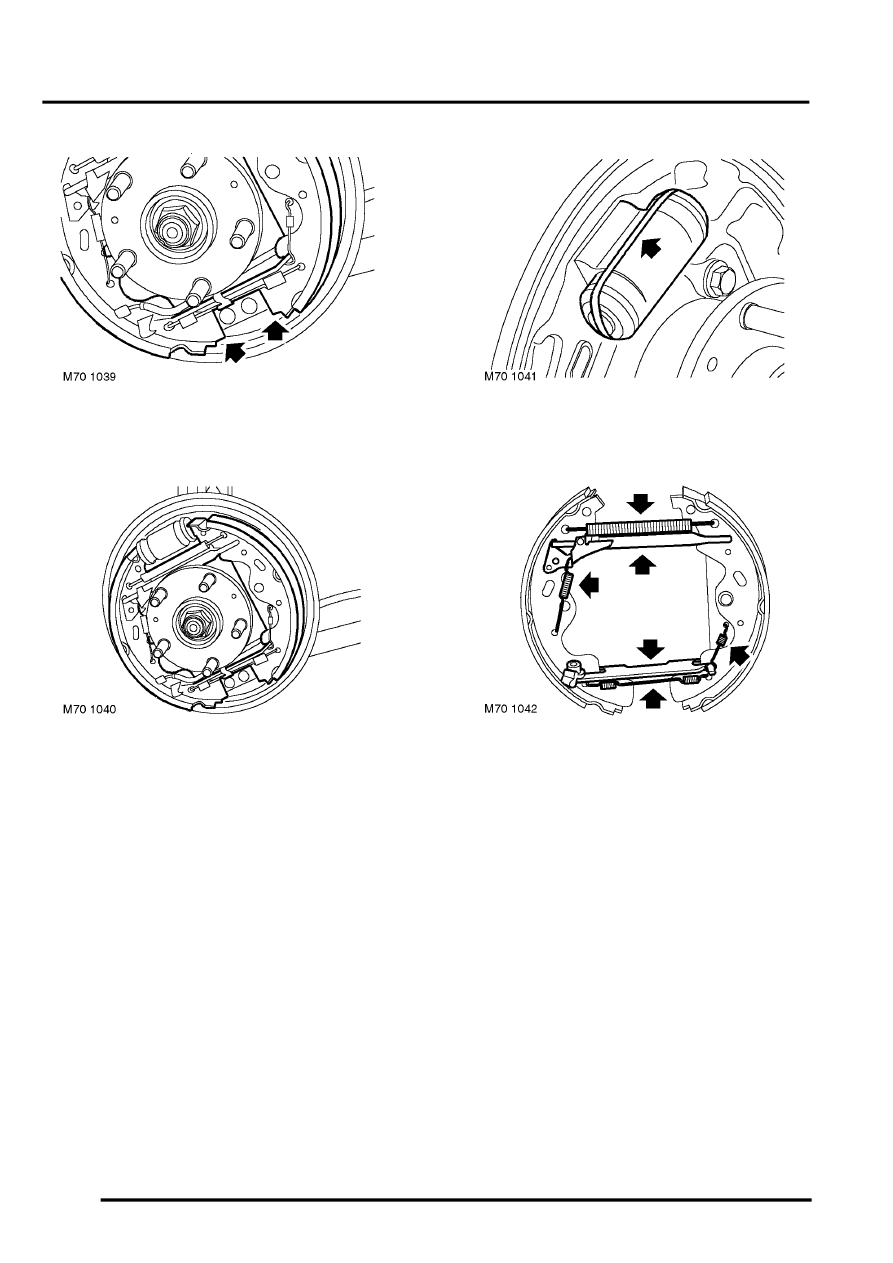

Brake Shoes - rear set
$% 70.40.09
Remove
1. Raise rear of vehicle.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.
2. Remove rear road wheels.
3. Remove rear brake drums.
4. Depress brake shoe clips and turn to release,
remove 2 clips and 2 retaining pins.
5. Release handbrake cable from brake shoe
lever.
M70 1148
A
B
