ENGINE MANAGEMENT SYSTEM - SIEMENS

18-3-10 REPAIRS

Sensor - throttle position (TP)

$% 18.30.17

Remove

1. Disconnect battery earth lead.
2. Remove acoustic cover.

 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

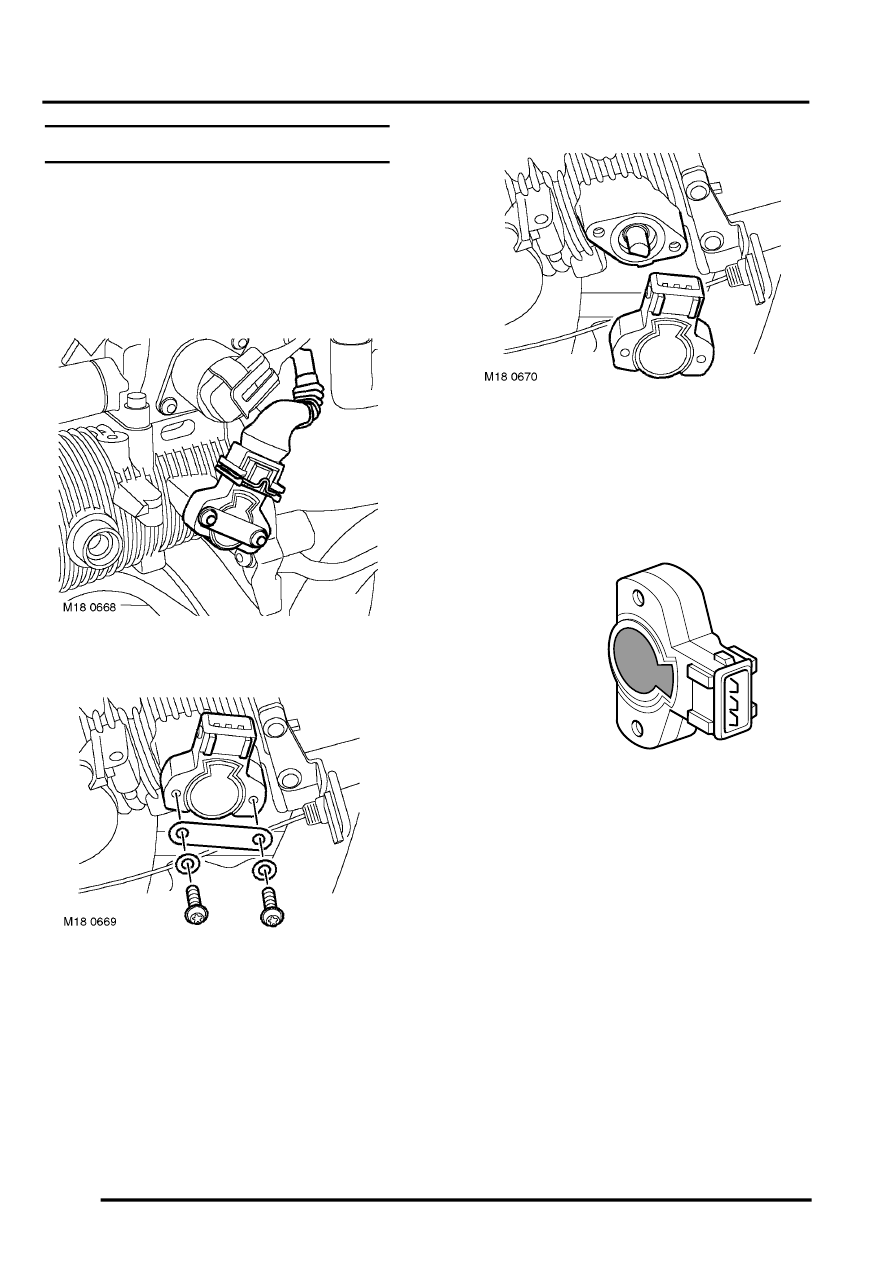

3. Disconnect multiplug from TP sensor.

4. Remove and discard 2 Torx screws and wave

washers securing TP sensor to inlet manifold.

5. Remove TP sensor specification plate.

6. Pull TP sensor from throttle spindle.

CAUTION: Do not twist or apply leverage to
throttle position sensor.

Refit

1. Clean mating faces of throttle housing and TP

sensor.

2. Fit TP sensor to throttle spindle. Ensure that

during fitting the machined flat on the throttle
spindle is aligned with the mating portion of the
TP sensor

CAUTION: The throttle position sensor can
be easily damaged during fitting. When
pressing the sensor onto the throttle
spindle, use fingers only, and only apply
pressure to the area shown shaded in the
illustration.

3. Rotate TP sensor in an anti-clockwise direction

to align fixing holes.

CAUTION: Do not rotate throttle position
sensor in a clockwise direction and ensure
that it is not rotated beyond its internal
stops.

4. Fit TP sensor specification plate.

M18 0695
