Freelander Service Procedures
PANEL REPAIRS
77-2-20 PROCEDURES

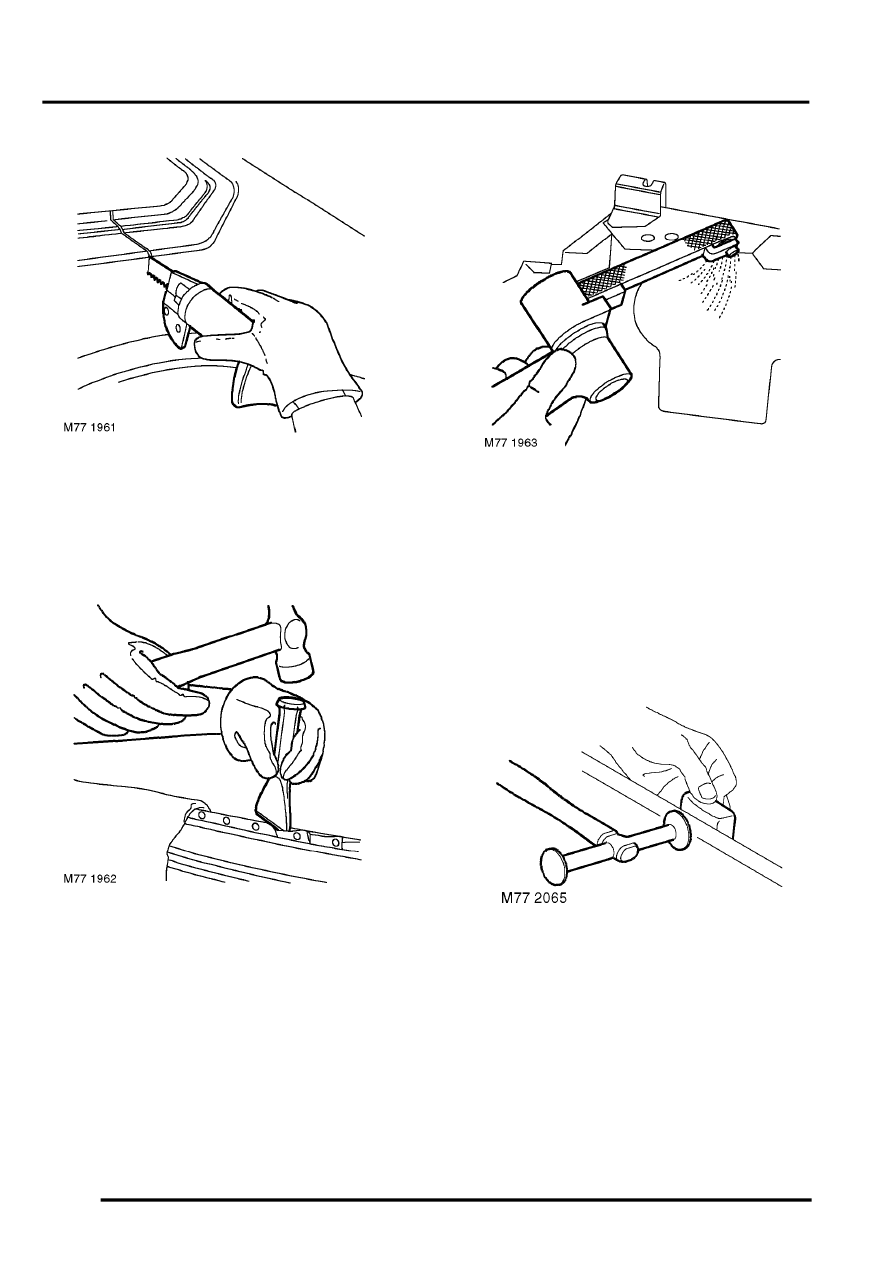

4. Cut away the bulk of the panel as necessary
using an air saw.
NOTE: On certain panel joints MIG welds and
braze should be removed using a sander where
possible, before cutting out the panel bulk.
5. Separate spot welded joints and remove panel
remnants using hammer, bolster, chisel and
pincers.
Prepare old surfaces
1. Clean all panel joint edges to a bright smooth
finish, using a belt-type sander.
NOTE: Prior to sanding, remove remaining
sealant using a hot air gun to minimise the risk
of toxic fumes caused by generated heat.
Caution: Care must be taken to avoid
excessive heat build up when using this
equipment.
2. Straighten existing panel joint edges using a
shaping block and hammer.
