Front Inner Body Side Panels - 3 Door: Replacement Procedures

Page 762
background image

PANEL REPAIRS

REPLACEMENT PANELS

77-2-7

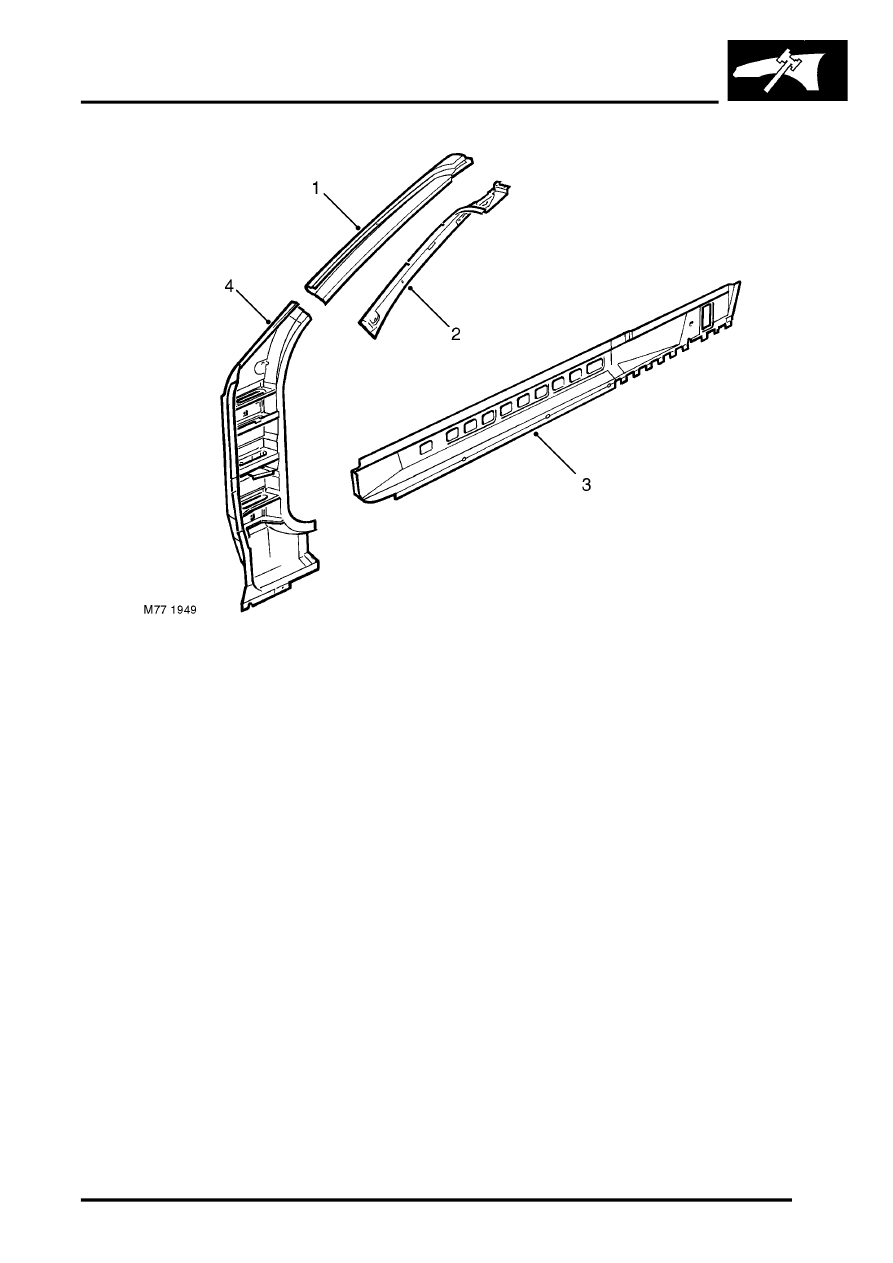

Front inner body side panels - 3 door

1 'A' post reinforcement
2 Inner 'A' post
3 Inner sill reinforcement
4 Lower 'A' post reinforcement
