Land Rover Freelander Body Repair Manual (1998 on)06 · Panel repairs
06 · General

Offer up and align (Panel repairs) (page 2 of 3)

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Procedures
Panel repairsOffer up and align · page 2 of 3
Diagram

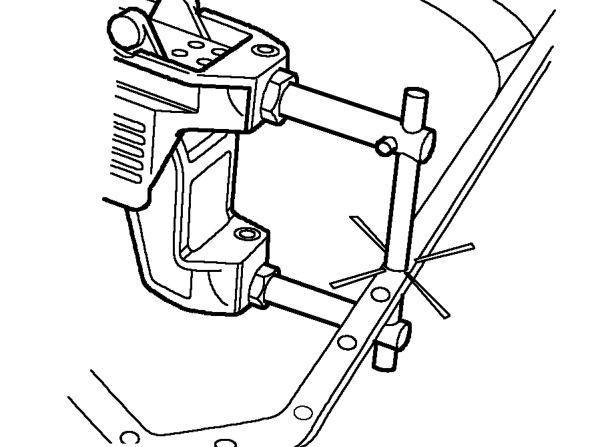

  1. Use a resistance spot welder where access permits. Try to ensure weld quality by using a welding monitor where possible.
Use a resistance spot welder where access permits. Try to ensure weld quality by using a w

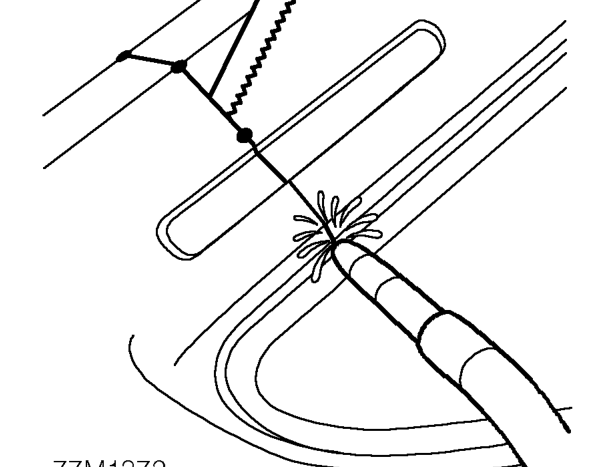

  1. MIG tack weld butt joints and re-check alignment and panel contours where necessary. Ensure that a gap is maintained to minimise welding distortion, by inserting a hacksaw blade as an approximate guide.
MIG tack weld butt joints and re-check alignment and panel contours where necessary. Ensur

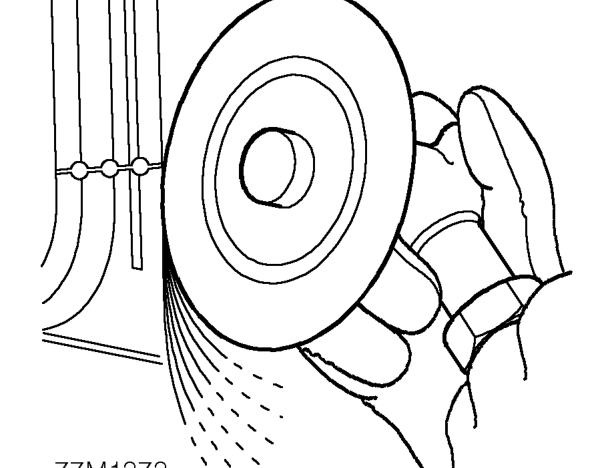

  1. Dress MIG tack welds using a sander with 36 grit disc, or a belt-type sander where access is limited.
