Land Rover Freelander Circuit Diagrams (2001 model year)11 · Charging and starting
11 · Electrical

Charging and starting

Make
Land Rover
Model
Freelander Circuit Diagrams
Year
2001 model year
Section
Charging and starting › Charging and starting
Charging and startingCharging and starting

CHARGING AND STARTING

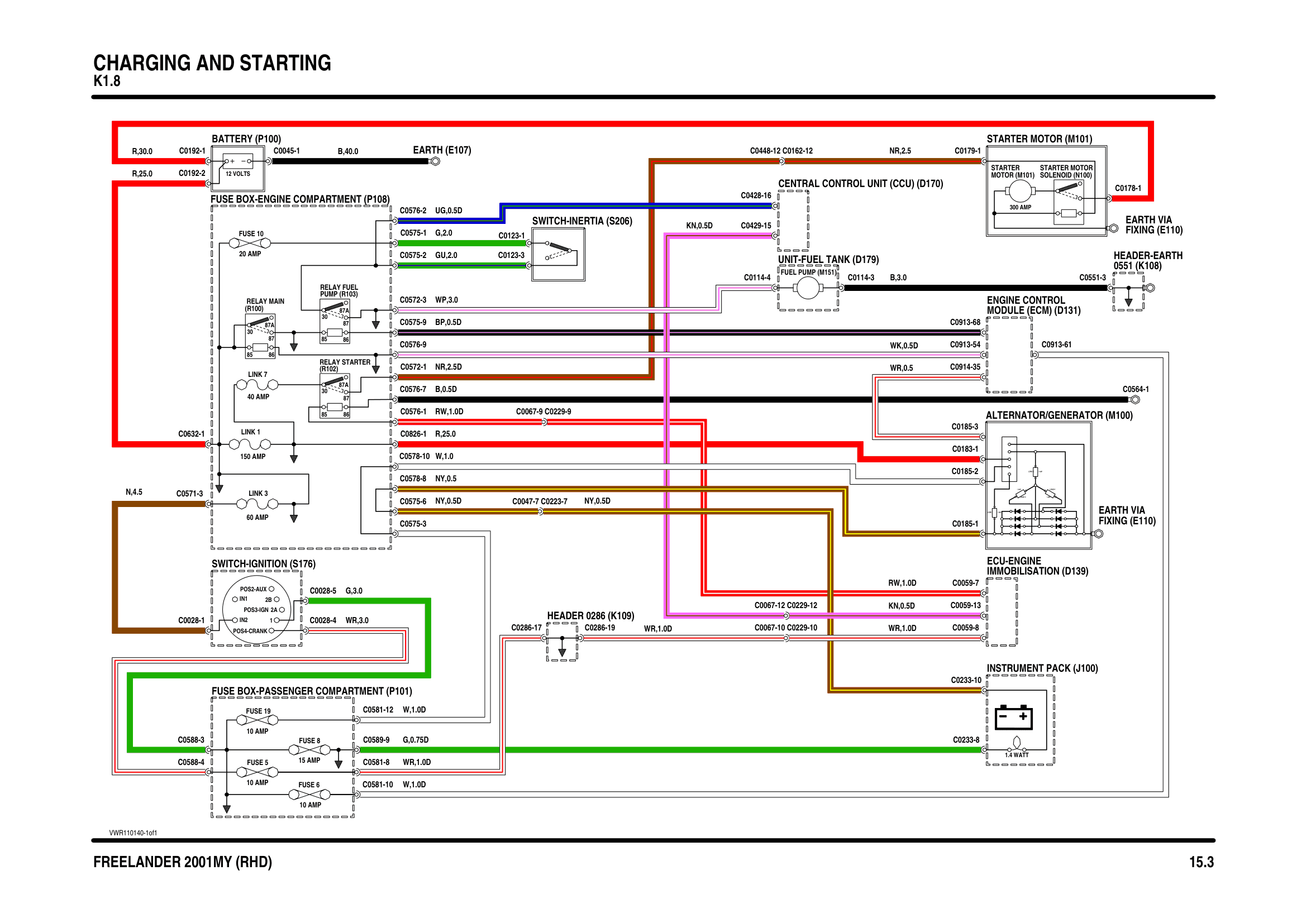

Charging And Starting circuit diagram
