Land Rover Freelander Circuit Diagrams (2002 model year on)21 · Air conditioning
21 · Heating & A/C

Air conditioning

Make
Land Rover
Model
Freelander Circuit Diagrams
Year
2002 model year on
Section
Air conditioning › Air conditioning
Air conditioningAir conditioning

AIR CONDITIONING

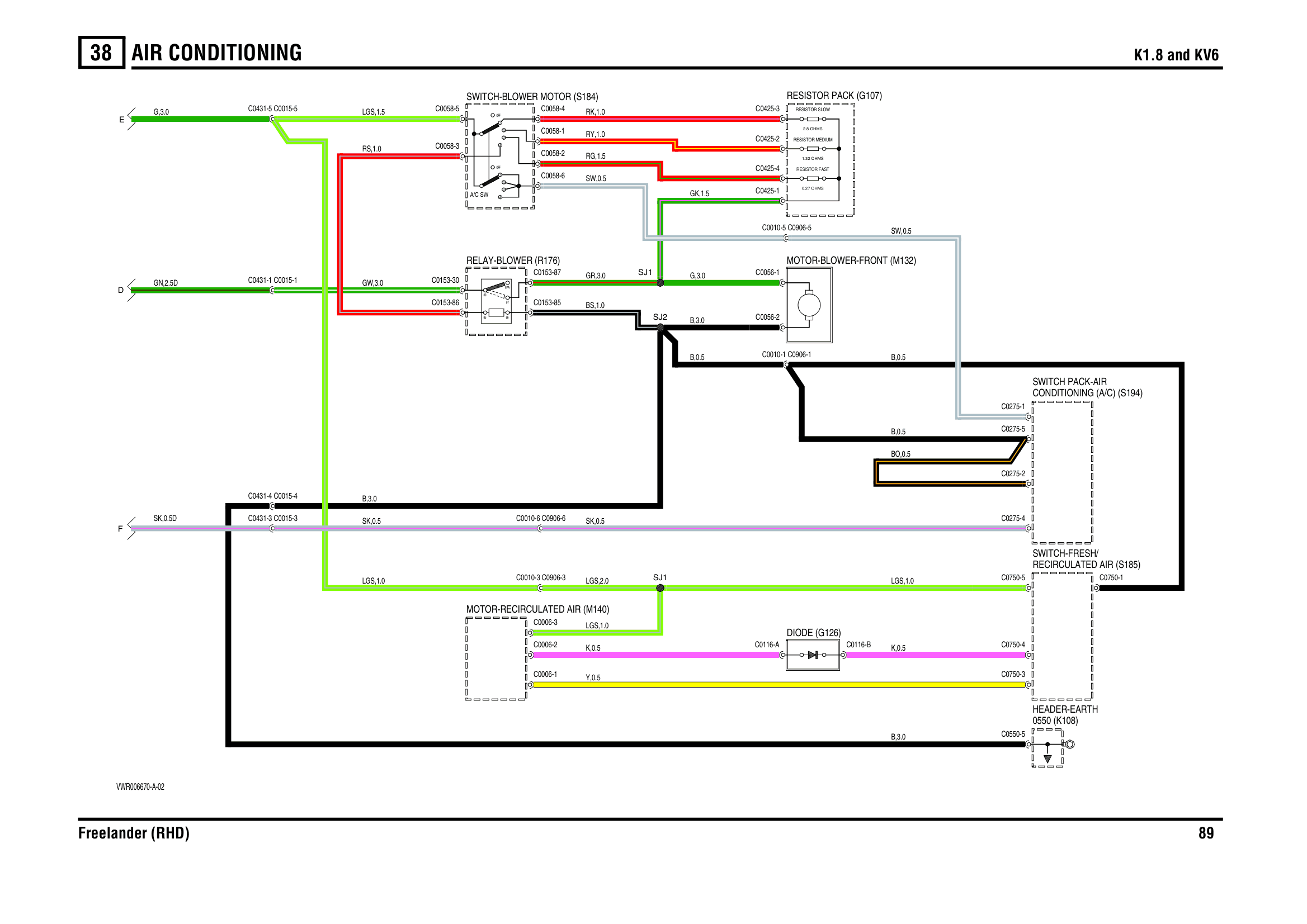

Air Conditioning circuit diagram
