Colour: LIGHT GREY Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0018 Header -Earth › Colour: LIGHT GREY Gender: Female

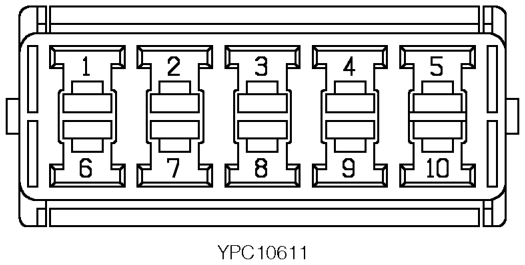

ConnectorsColour: LIGHT GREY Gender: Female
| Cav 1 | Col B | Cct 5 |
| 2 | B | 5 |
| 3 | B | 5 |
| 4 | B | 5 |
| 5 | B | 5 |
| 6 | B | 5 |
| 7 | B | 5 |
| 8 | B | 5 |
| 9 | B | 5 |
| 10 | B | 5 |

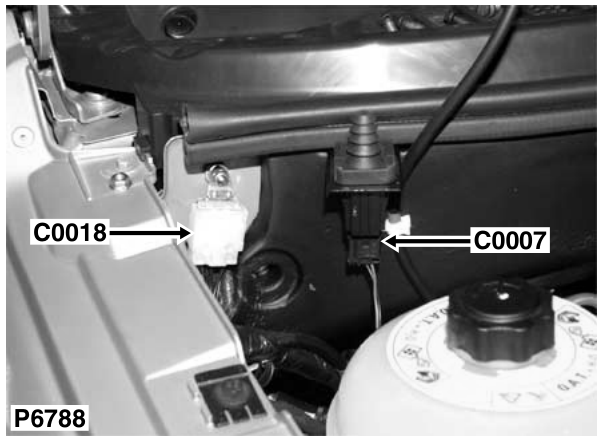

Description: Header -Earth Location: Rear RH side of engine compartment
Colour: LIGHT GREY Gender: Female
