Description: Switch-Ignition
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0028 Switch-Ignition › Description: Switch-Ignition

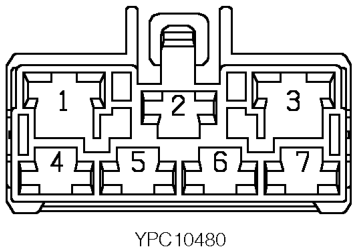

ConnectorsDescription: Switch-Ignition
| Cav 1 | Col N | Cct ALL |
| 2 | NW | ALL |
| 3 | NR | ALL |
| 4 | WR | ALL |
| 5 | G | ALL |
| 6 | SU | ALL |
| 7 | PS | ALL |
Description: Switch-Ignition

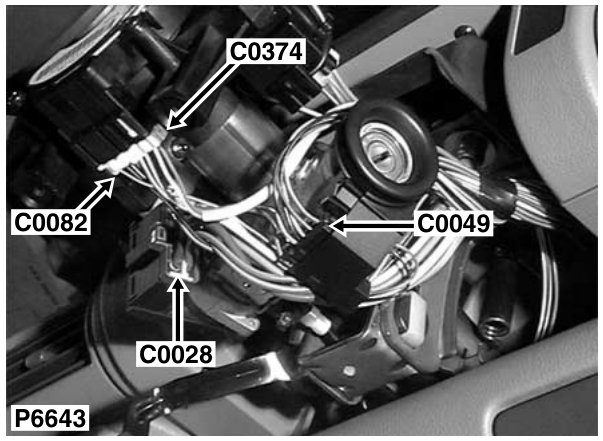

Location: Underside of steering column
Colour: BROWN Gender: Female
