Description: Switch-Lighting
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0041 Switch-Lighting › Description: Switch-Lighting
ConnectorsDescription: Switch-Lighting
| Cav 1 | Col U | Cct ALL |
| 2 | UO | ALL |
| 2 | UG | 19 |
| 3 | RN | ALL |
| 4 | R | ALL |
| 4 | RW | 19 |
| 5 | UW | ALL |
| 6 | UN | ALL |

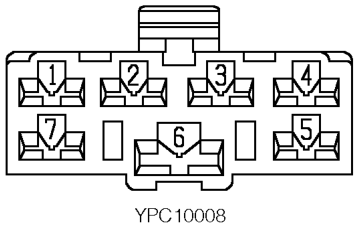

Description: Switch-Lighting

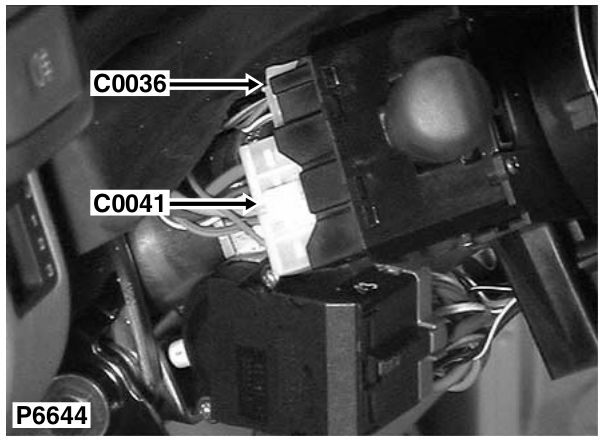

Location: LH side of steering column
Colour: NATURAL Gender: Female
