Description: Coil-Transponder
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0049 Coil-Transponder › Description: Coil-Transponder
ConnectorsDescription: Coil-Transponder
| Cav 1 | Col PW | Cct ALL |
| 3 | P | ALL |
| 5 | KB | ALL |
| 6 | B | ALL |
| 7 | KG | ALL |
| 8 | BR | ALL |

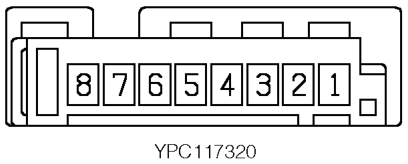

Description: Coil-Transponder

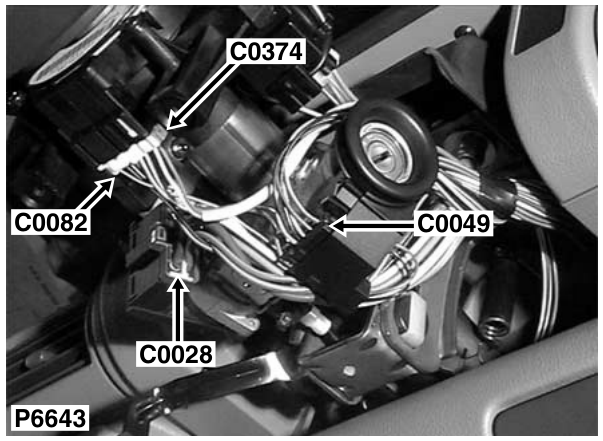

Location: RH side of steering column
Colour: BLACK Gender: Female
