Description: ECU-Engine Immobilisation
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0059 ECU-Engine Immobilisation › Description: ECU-Engine Immobilisation

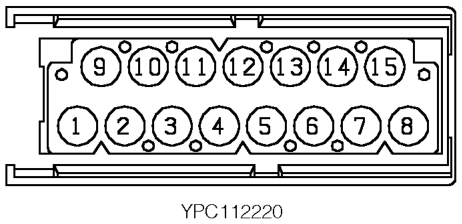

ConnectorsDescription: ECU-Engine Immobilisation
| Cav 1 | Col B | Cct ALL |
| 2 | PN | ALL |
| 3 | W | ALL |
| 4 | K | ALL |
| 5 | WB | ALL |
| 7 | RW | ALL |
| 8 | WR | ALL |
| 9 | G | ALL |
| 10 | KB | ALL |
| 11 | KG | ALL |
| 13 | KN | ALL |
| 14 | YR | ALL |
| 15 | ON | ALL |
Description: ECU-Engine Immobilisation

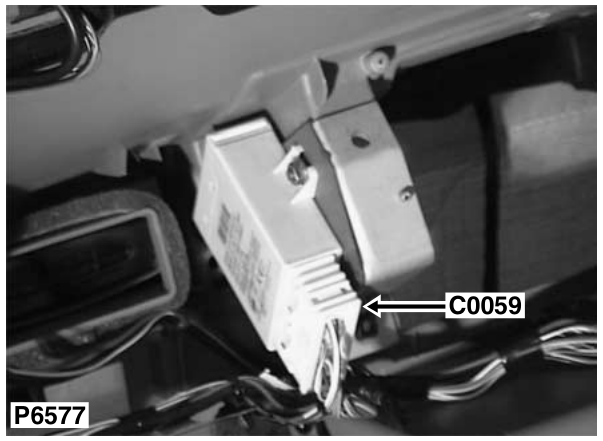

Location: Behind centre of fascia
Colour: NATURAL Gender: Female
