Description: Switch-Mirror
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0066 Switch-Mirror › Description: Switch-Mirror
ConnectorsDescription: Switch-Mirror
| Cav 1 | Col BY | Cct ALL |
| 2 | BP | ALL |
| 3 | SW | ALL |
| 4 | B | ALL |
| 5 | BN | ALL |
| 6 | G | ALL |
| 7 | BU | ALL |
| 8 | UB | 15 |
Description: Switch-Mirror

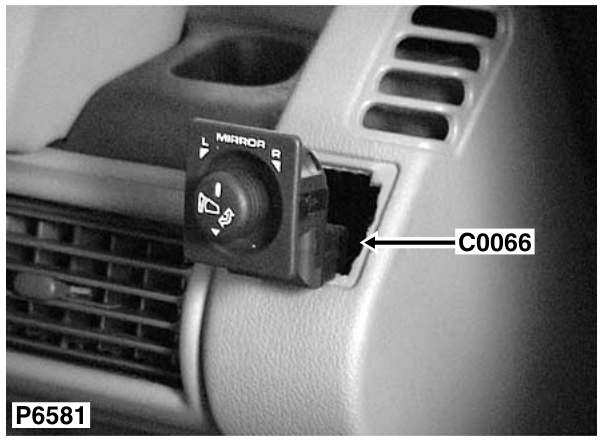

Location: Behind driver side of fascia
Colour: BLACK Gender: Female
