Description: Head Unit-Audio System
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0092 Head Unit-Audio System › Description: Head Unit-Audio System
ConnectorsDescription: Head Unit-Audio System
| Cav 1 | Col UK | Cct 10 |
| 1 | BG | ALL |
| 2 | UB | 10 |
| 2 | BO | ALL |
| 3 | OK | 10 |
| 3 | BP | ALL |
| 4 | OB | 10 |
| 4 | BU | ALL |
| 5 | YK | 10 |
| 5 | BW | ALL |
| 6 | YB | 10 |
| 6 | BS | ALL |
| 7 | SK | 10 |
| 7 | BN | ALL |
| 8 | SB | 10 |
| 8 | BR | ALL |

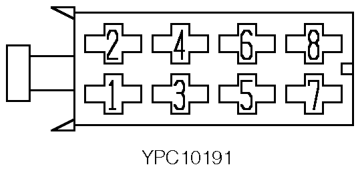

Description: Head Unit-Audio System
Location: Behind centre console
Colour: BROWN Gender: Female
