Description: DCU-Airbag
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0256 DCU-Airbag › Description: DCU-Airbag
ConnectorsDescription: DCU-Airbag
| Cav 26 | Col G | Cct ALL |
| 27 | YR | ALL |
| 28 | B | ALL |
| 29 | R | ALL |
| 30 | Y | ALL |
| 31 | W | ALL |
| 32 | U | ALL |
| 33 | O | ALL |
| 34 | OU | ALL |
| 35 | N | ALL |
| 36 | NR | ALL |
| 54 | K | ALL |
Description: DCU-Airbag

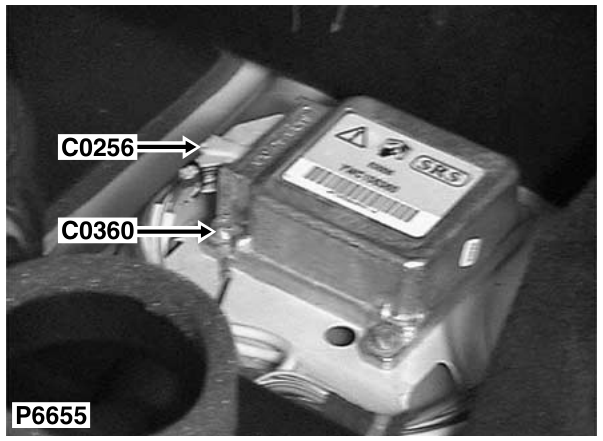

Location: Behind centre console
Colour: ORANGE Gender: Female
