Description: Switch-Window-Front-LH
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0321 Switch-Window-Front-LH › Description: Switch-Window-Front-LH
ConnectorsDescription: Switch-Window-Front-LH
| Cav 1 | Col B | Cct ALL |
| 2 | RG | ALL |
| 3 | OY | 4 |
| 3 | U | 5 |
| 4 | OG | 4 |
| 4 | R | 5 |
| 6 | RO | ALL |

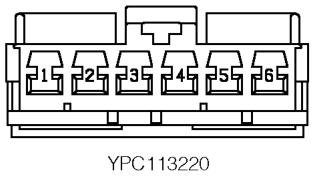

Description: Switch-Window-Front-LH

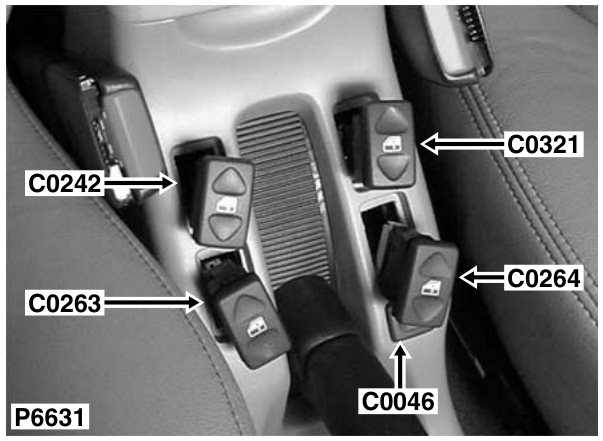

Location: In rear of centre console
Colour: WHITE Gender: Female
