Colour: GREEN Gender: Female
- Make
- Land Rover
- Model
- Freelander Electrical Library
- Year
- 2001 on
- Section
- C0354 Switch-Window-Tail door › Colour: GREEN Gender: Female
ConnectorsColour: GREEN Gender: Female
| Cav 1 | Col B | Cct ALL |
| 3 | BR | ALL |
| 4 | BK | ALL |
| 6 | RO | ALL |

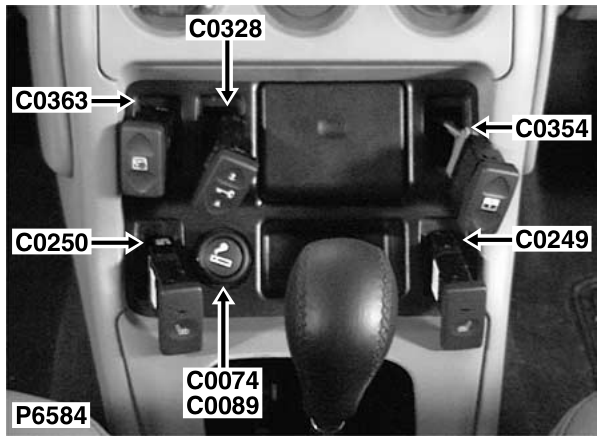

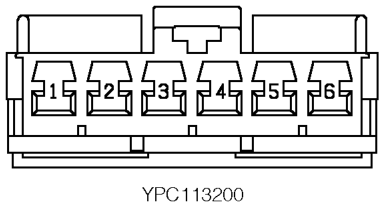

Description: Switch-Window-Tail door Location: Behind centre console
Colour: GREEN Gender: Female
